Cisco 200-301 Practice Exams
Last updated on Apr 07,2025- Exam Code: 200-301
- Exam Name: Implementing and Administering Cisco Solutions
- Certification Provider: Cisco
- Latest update: Apr 07,2025

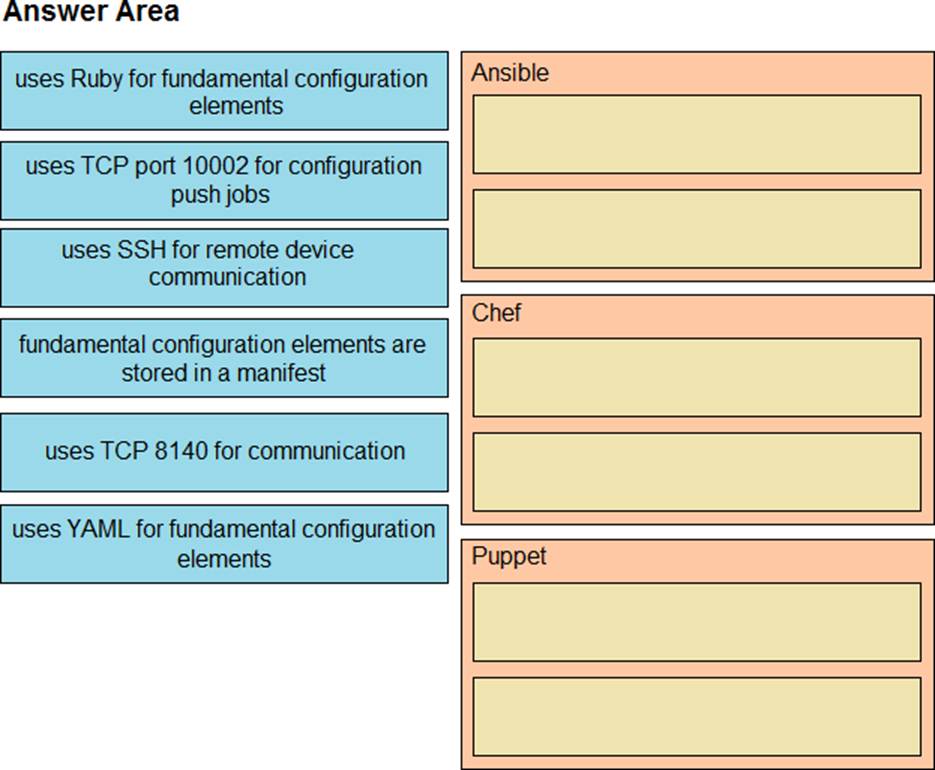

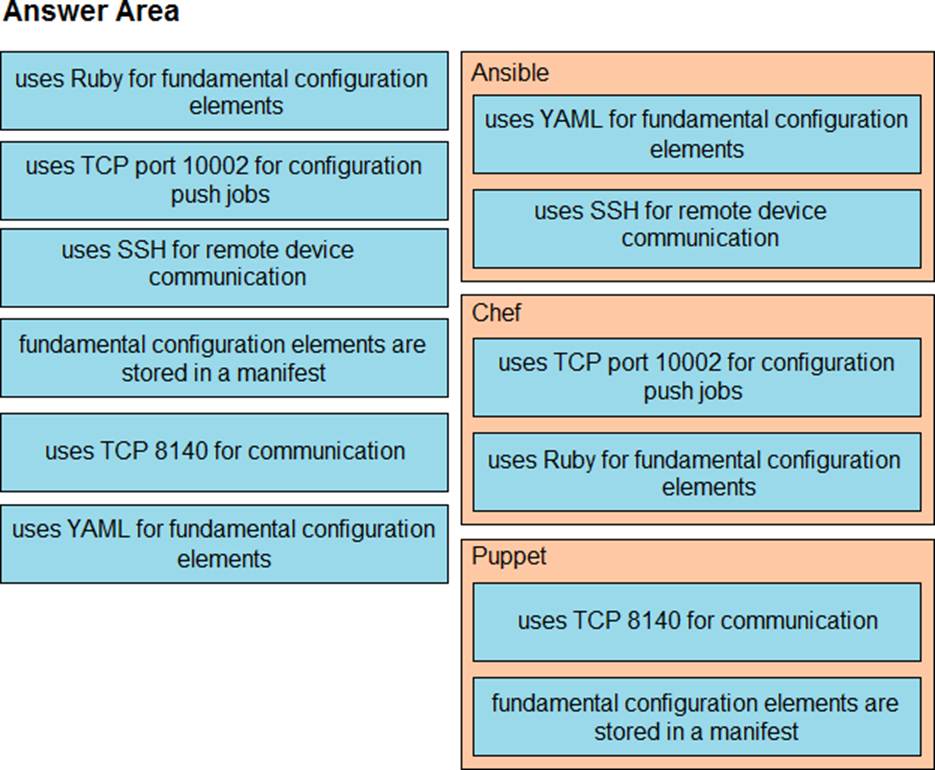

DRAG DROP
Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.
DRAG DROP
Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.

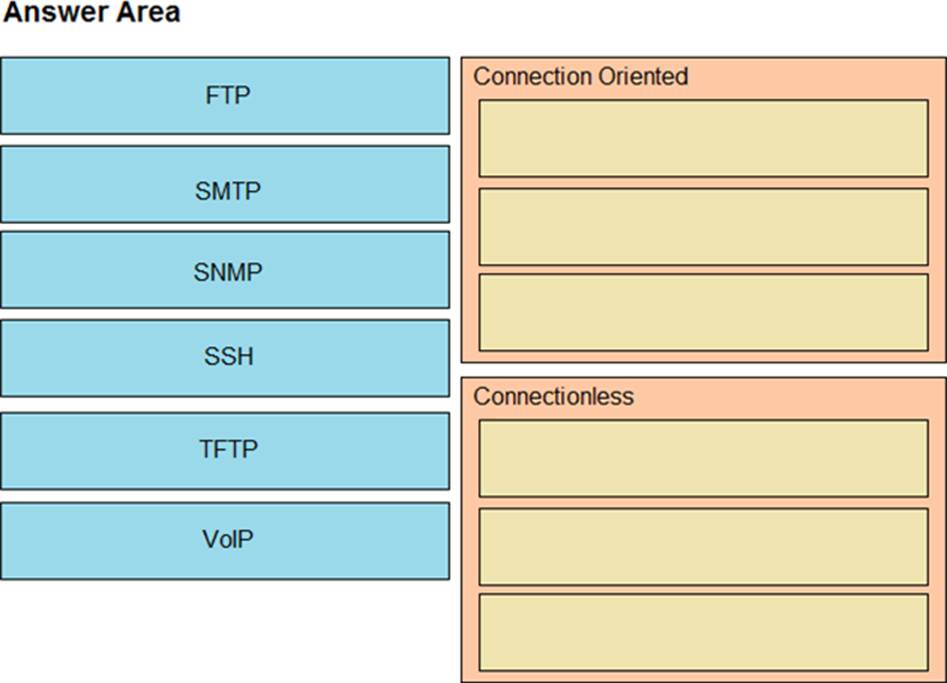

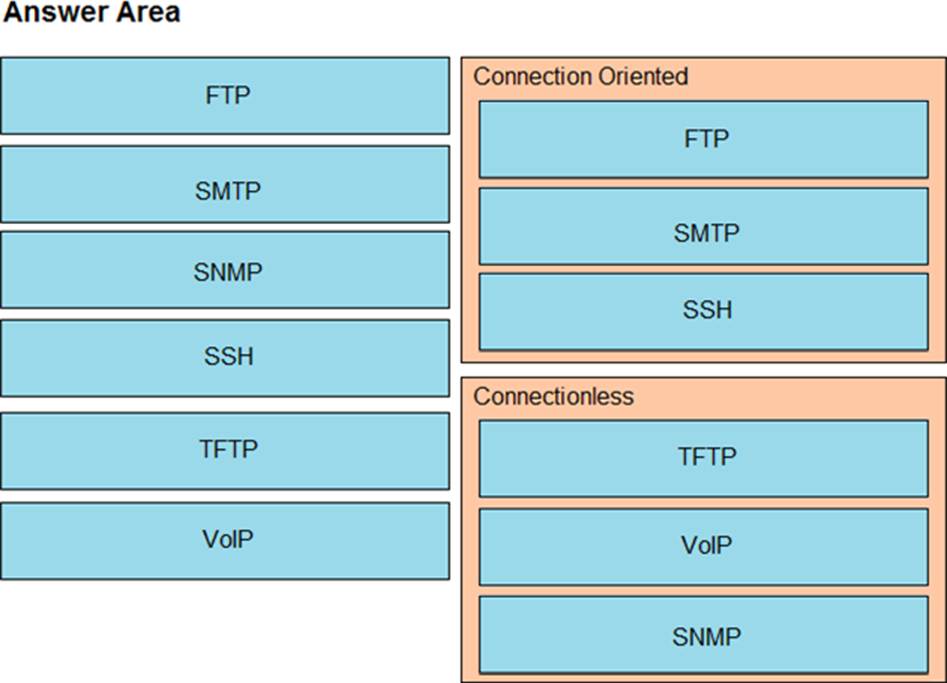

DRAG DROP
Drag and drop the network protocols from the left onto the correct transport services on the right.

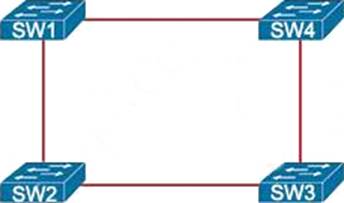

Refer to the exhibit.
Which switch in this configuration will be elected as the root bridge?
SW1: 0C:E0:38:00:36:75
SW2: 0C:0E:15:22:05:97
SW3: 0C:0E:15:1A:3C:9D
SW4: 0C:E0:18:A1:B3:19
- A . SW1
- B . SW2
- C . SW3
- D . SW4
Which technology is used to improve web traffic performance by proxy caching?
- A . WSA
- B . Firepower
- C . ASA
- D . FireSIGHT

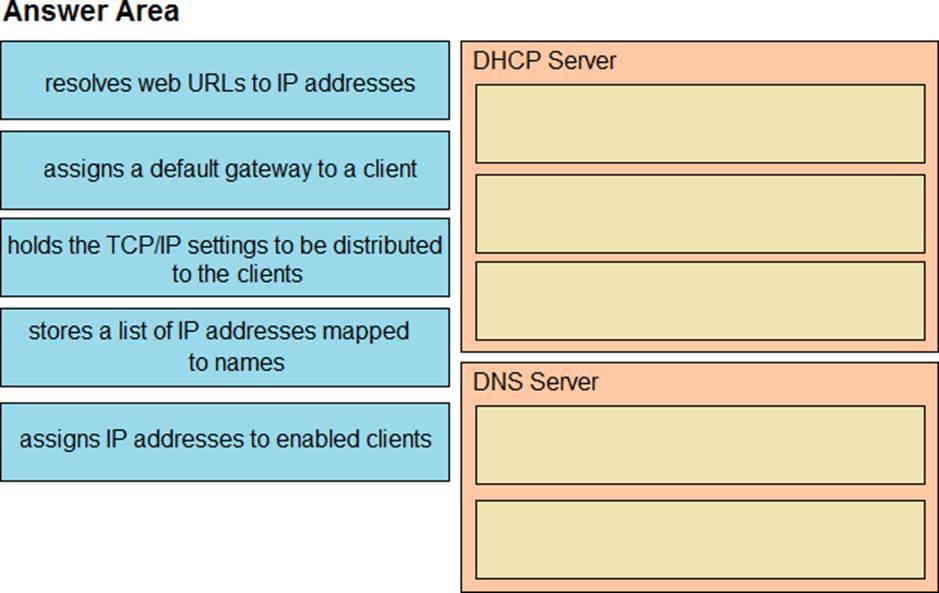

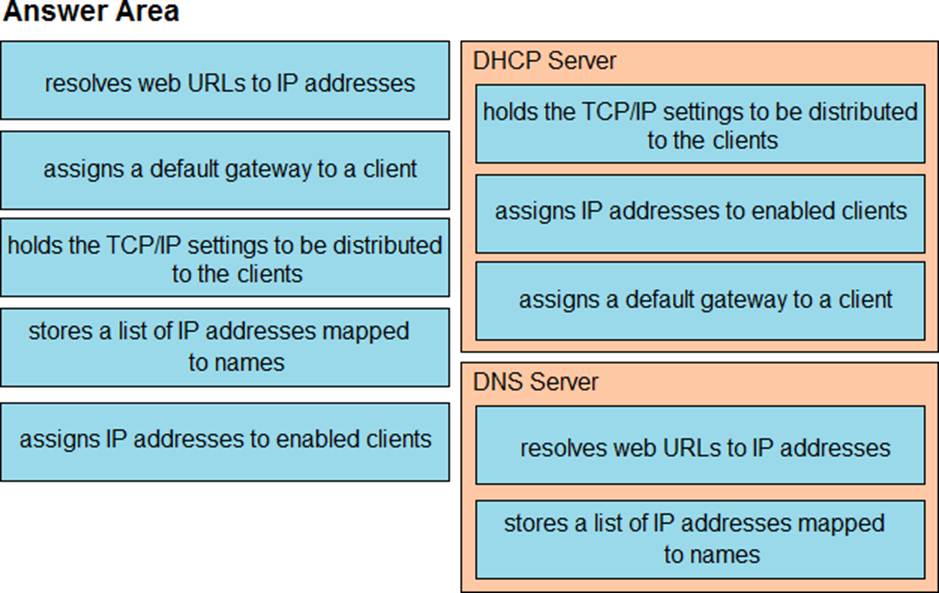

DRAG DROP
Drag and drop the functions from the left onto the correct network components on the right
Which feature on the Cisco Wireless LAN Controller when enabled restricts management access from specific networks?
- A . CPU ACL
- B . TACACS
- C . Flex ACL
- D . RADIUS
What is the difference regarding reliability and communication type between TCP and UDP?
- A . TCP is reliable and is a connection-oriented protocol UDP is not reliable and is a connectionless protocol
- B . TCP is not reliable and is a connection-oriented protocol; UDP is reliable and is a connectionless protocol
- C . TCP is not reliable and is a connectionless protocol; UDP is reliable and is a connection-oriented protocol
- D . TCP is reliable and is a connectionless protocol; UDP is not reliable and is a connection-oriented protocol

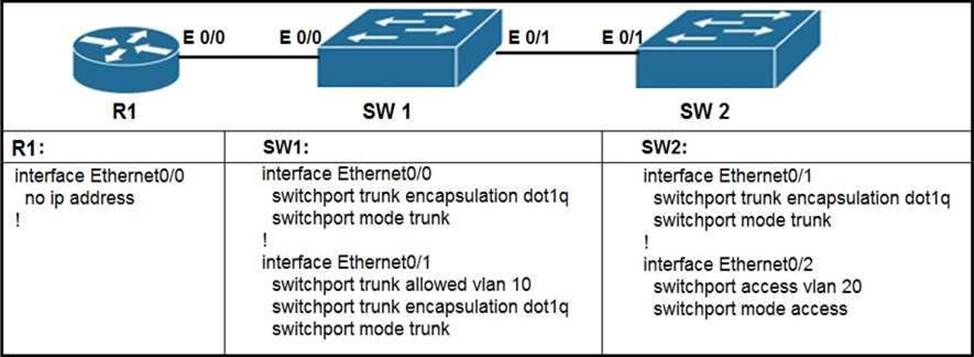

Refer to the exhibit.
What commands are needed to add a subinterface to Ethernet0/0 on R1 to allow for VLAN 20, with IP address 10.20.20.1/24?
- A . R1(config)#interface ethernet0/0
R1(config)#encapsulation dot1q 20
R1(config)#ip address 10.20.20.1 255.255.255.0 - B . R1(config)#interface ethernet0/0.20
R1(config)#encapsulation dot1q 20
R1(config)#ip address 10.20.20.1 255.255.255.0 - C . R1(config)#interface ethernet0/0.20
R1(config)#ip address 10.20.20.1 255.255.255.0 - D . R1(config)#interface ethernet0/0
R1(config)#ip address 10.20.20.1 255.255.255.0
When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?
- A . The floating static route must have a higher administrative distance than the primary route so it is used as a backup
- B . The administrative distance must be higher on the primary route so that the backup route becomes secondary.
- C . The floating static route must have a lower administrative distance than the primary route so it is used as a backup
- D . The default-information originate command must be configured for the route to be installed into the routing table
