Cisco 300-610 Practice Exams
Last updated on Apr 01,2025- Exam Code: 300-610
- Exam Name: Designing Cisco Data Center Infrastructure (DCID)
- Certification Provider: Cisco
- Latest update: Apr 01,2025

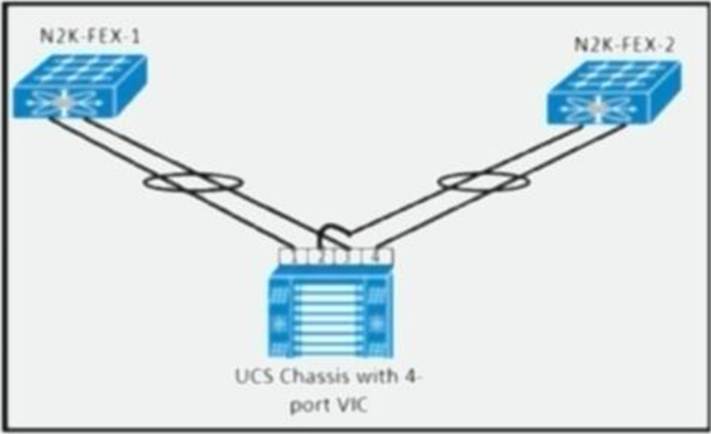

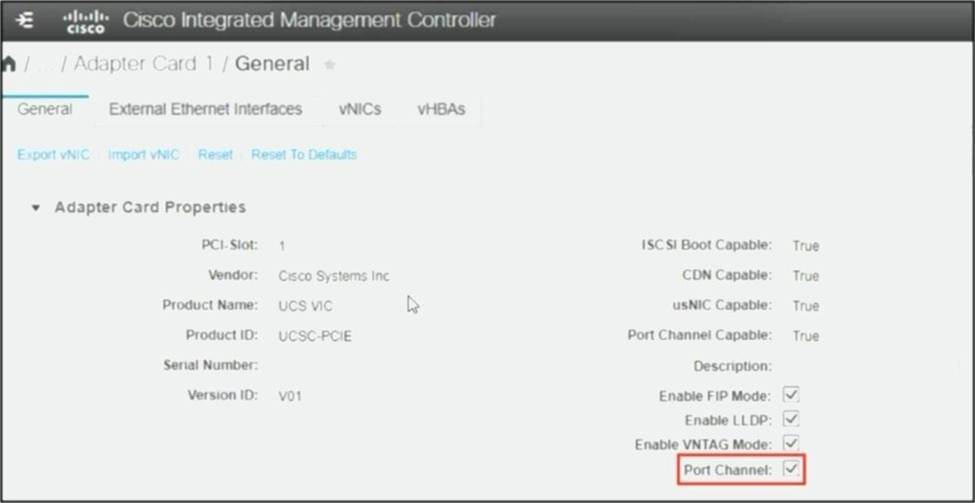

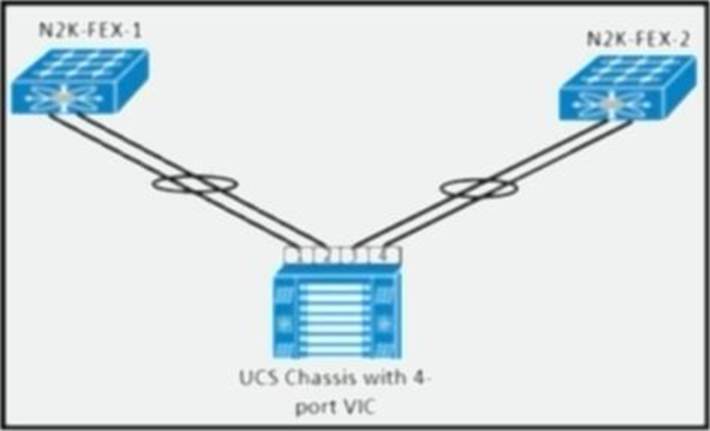

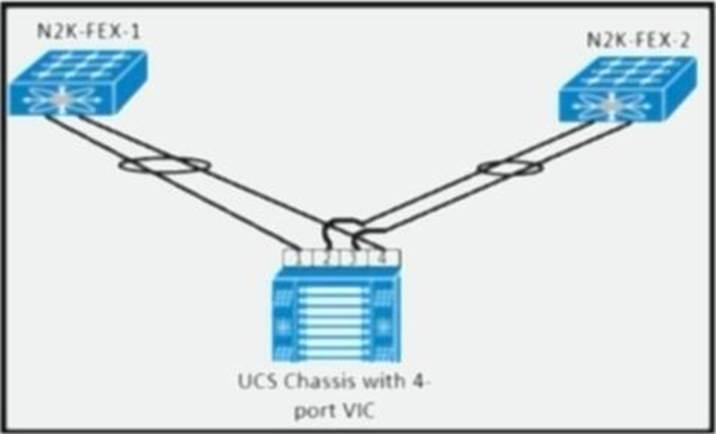

Refer to the exhibit.
An engineer must connect the four-port Cisco UCS VIC adapter to the fabric extenders.
Which connectivity implements a port-channel standalone mode?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
An enterprise is experiencing transmission errors and excessive delays over their WAN when backing up user workstations. A systems architect decided to resolve the problems by centralizing data storage and processing to within the confines of the data center.
Which technology is most suitable to mitigate the issues?
- A . QoS
- B . RAS
- C . VDI
- D . VDC
Which orchestration tool should be used for the management and analytics of servers across multiple sites?
- A . Cisco Intersight
- B . Cisco Nexus Fabric Manager
- C . Cisco UCS Manager
- D . Cisco Data Center Network Manager
A Cisco engineer is configuring MPLS VPN BGP at a customer site that is connected to the provider site by more than one path MPLS VPN BGP Local Convergence link protection is enabled. After the engineer installs the main forwarding path and the redundant backup path within the BGP, they assign a unique route distinguisher to each VRF table on all PE devices that serve as a backup to the link.
What is a prerequisite for this local convergence to work?
- A . Interautonomous system option A (back-to-back VRF) is active.
- B . BGP must support lossless switchover between operational paths
- C . IP/GRE is enabled.
- D . The system is performing a PE-CE link protection on both ends
A company runs mission -critical infrastructure in a single data center. Due to business growth It plans to open more data center in the coming years. A network engineer is asked to recommend a network technology for data center interconnection that allows scalability and seamless VM mobility while providing maximum security and fault isolation between data center.
Which technology must be used to meet these requirements?
- A . Cloudsec
- B . UDLD
- C . Trustsec
- D . OTV
The user traffic destined to all web servers located in the data center must pass first through a set of firewalls for deep packet inspection.
A network architect must design the Cisco Intelligent Traffic Director (ITD) deployment that meets these requirements:
✑ The firewalls are connected to a set of two Cisco Nexus switches to provide stateful handling of traffic.
✑ The ITD service is provided for inside and outside segments of the firewall.
Which ITD deployment mode must be implemented to meet these requirements?
- A . server load-balancing deployment mode
- B . server vPC deployment mode
- C . one-arm deployment mode
- D . sandwich deployment mode
An engineer must design a DNS service available to multiple network zones as a shared service. The network zones are deployed as VRFs within the data center network and no firewall is available for communication between VRFs.
Which protocol is needed to implement the shared services?
- A . BGP
- B . OSPF
- C . ISIS
- D . VXLAN
Which two automation requirements can be met by using Puppet? (Choose two.)
- A . Push configuration updates immediately to servers.
- B . Enable clients to pull changes to configuration files.
- C . Enable clients to pull changes without installing an agent.
- D . Provide support for writing new modules in Python.
- E . Enable one-off infrastructure changes to be performed manually.

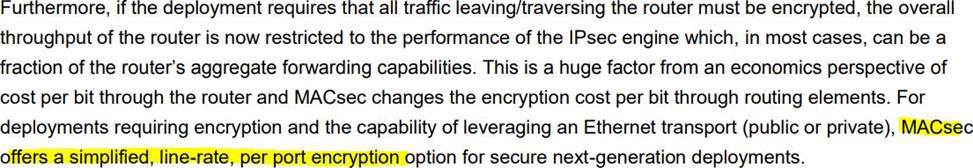

An engineer must interconnect two geographically separated data centers. The service provide offers a Layer 2 metro Ethernet link. The strict security policy requires that the information that is shared between two sites must be sent encrypted. The application deployed between sites requires a line-rate throughput regardless of the packet size and speed.
Which solution meets these requirements?
- A . IPsec
- B . MACsec
- C . L2TPv2
- D . L2TPv3
A network architect needs secure access to the organization’s perimeter routers and firewalls. The administrator must access network devices from a remote location that is reachable from the WAN cloud
Which action meets these requirements?
- A . Create a secure IPsec tunnel interface using an internet link for device management purposes
- B . Enable the SSH protocol with a strong username and password using an internet link for management purposes
- C . Create an out-of-band network management network
- D . Create an in-band network management network
