Cisco 350-501 Practice Exams
Last updated on Apr 01,2025- Exam Code: 350-501
- Exam Name: Implementing and Operating Cisco Service Provider Network Core Technologies
- Certification Provider: Cisco
- Latest update: Apr 01,2025

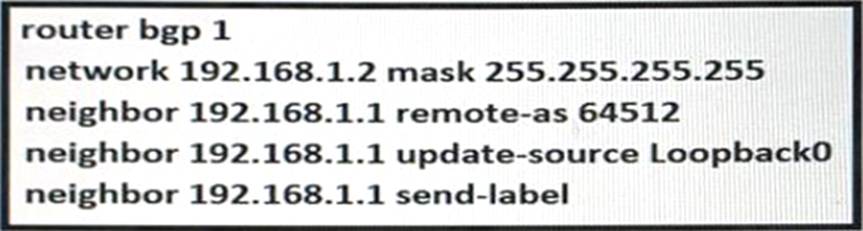

Refer to the exhibit:
Which statement about the neighbor statements for 192.168.1.1 is true?
- A . The router must have TDP configured for the send-label command to operate
- B . The neighbor router receives at least four labels from this router
- C . The router sends BGP labels for its prefixes to this peer
- D . The router sends only a label for the prefix for Loopback.

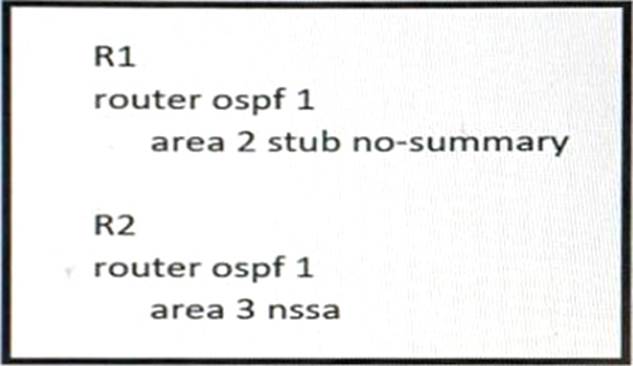

Refer to the exhibit:
In which way does router R1 operate differently than router R2?
- A . R1 sends LSA type 2 only, while R2 sends type 1 and type 7 LSAs
- B . R1 sends LSA types 1 and 2, while R2 sends type 1. 2. and 7 LSAs
- C . R1 sends LSA type 2 only and R2 sends LSA type 1 only
- D . R1 sends LSA types 5 and 7, while R2 sends type 1, 2, and 7 LSAs
Which three OSPF parameters must match before two devices can establish an OSPF adjacency? (Choose three.)
- A . IP address
- B . interface cost
- C . subnet mask
- D . process ID
- E . hello timer setting
- F . area number

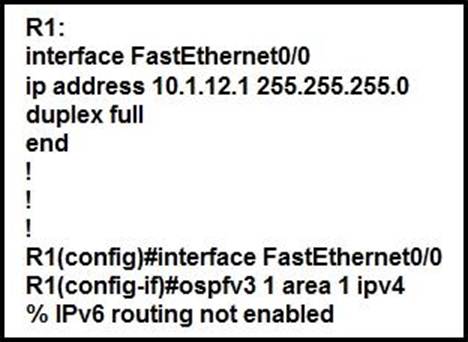

Refer to the exhibit:
A network engineer is implementing an OSPF configuration Based on the output, which statement is true?
- A . In the ospfv3 1 area 1 ipv4 command, area 0 must be configured instead of area 1.
- B . OSPFv3 does not run for IPv4 on FastEthemet0/0 until IPv6 routing is enabled on the router and IPv6 is enabled on interface Fastfc.thernet0/0
- C . OSPFv3 cannot be configured for IPv4; OSPFv3 works only for IPv6.
- D . IPv6 routing not enabled" is just an informational message and OSPFv3 runs for IPv4 on interface FastEthernet0/0 anyway

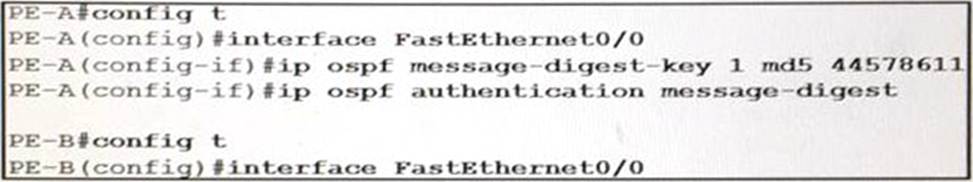

Refer to the exhibit:
An engineer wants to authenticate the OSPF neighbor between PEA and PE-B using MD5.
Which command on PE-B successfully completes the configuration?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D

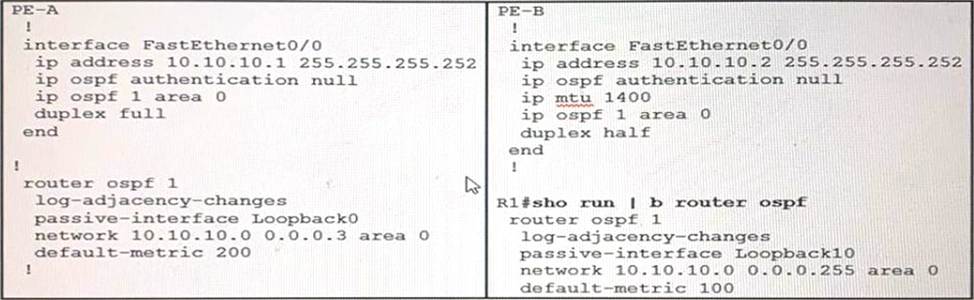

Refer to the exhibit:
Which configuration prevents the OSPF neighbor from establishing?
- A . mtu
- B . duplex
- C . network statement
- D . default-metric
Refer to the exhibit:
This output is included at the end of an output that was provided by a device using NETCONF.
What does the code show?
- A . It shows the hostname of the device as rpc-reply
- B . It shows that the running configuration is blank
- C . It shows NETCONF uses remote procedure calls.
- D . It shows that the full configuration is being modeled by VANG

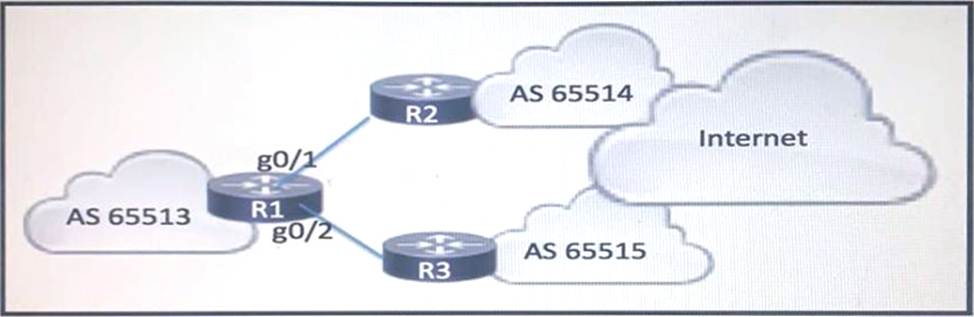

Refer to the exhibit:
R1 is connected to two service providers and is under a DDoS attack.
Which statement about this design is true if uRPF in strict mode is configured on both interfaces?
- A . R1 accepts source addresses on interface gigabitethernet0/1 that are private addresses
- B . R1 permits asymmetric routing as long as the AS-RATH attribute entry matches the connected AS
- C . R1 drops destination addresses that are routed to a null interface on the router
- D . R1 drops all traffic that ingresses either interface that has a FIB entry that exits a different interface
Refer to the exhibit:
What does this value mean when it is received in XML?
- A . It shows the ending of the script
- B . It indicates a break in a sequence
- C . It indicates a value assigned by a network administrator to tag a route
- D . It means a data field is blank

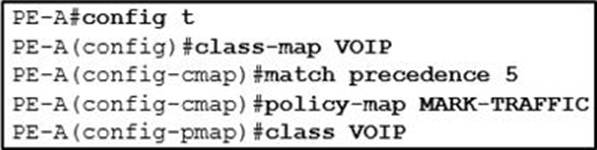

Refer to the exhibit:
Which command is used to complete this configuration for QoS class-based marking?
- A . PE-A(config-pmap-c)#set dscp ef
- B . PE-A(config-pmap-c)#fair-queue
- C . PE-A(config-pmap-c)#random-detect
- D . PE-A(config -pmap-c)#priority
