Cisco 350-601 Practice Exams
Last updated on Apr 01,2025- Exam Code: 350-601
- Exam Name: Implementing and Operating Cisco Data Center Core Technologies (DCCOR)
- Certification Provider: Cisco
- Latest update: Apr 01,2025
The Cisco Nexus 5600 Series Switch experiences occasional packet drops on interface ethernet 1/16. An engineer wants to implement a SPAN session to investigate the issue further. The network analyzer to which the packets must be directed is located on interface 1/3. The analyzer is limited on disk space available for traffic capture, so the Nexus switch should send only the relevant data.
Which two command sets configure the SPAN session that meets these requirements? (Choose two.)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
- E . Option E
A network engineer is adding a Cisco HyperFlex data platform to the Cisco intersight management portal.
Which two components are required for Intersight to claim the Cisco HyperFlex data platform? (Choose two.)
- A . device FQDN
- B . device public IP address
- C . device claim code
- D . device ID
- E . device serial number
An environment consists of a Cisco MDS 9000 Series Switch that uses port channels. An engineer must ensure that frames between the source and the destination follow the same links for a specific flow. Subsequent flows are allowed to use a different link.
Which load balancing method should be used to accomplish this goal?
- A . src-id/dst-id
- B . src-dst-oui
- C . src-dst-port
- D . src-id/dst-id/oxid
DRAG DROP

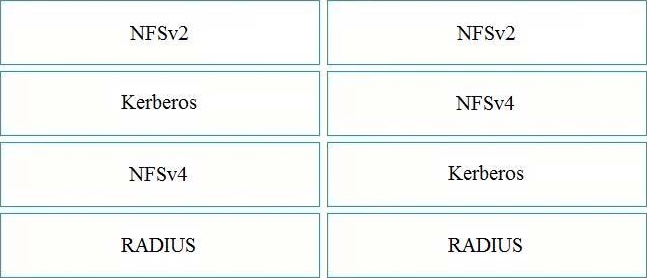

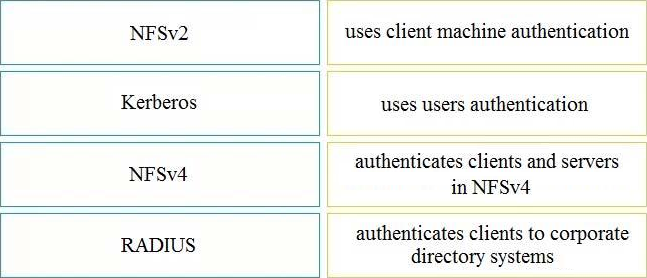

Drag and drop the storage technologies from the left onto the correct descriptions on the right.
The FCoE technology is used in a data center and the MDS switches are configured as Fibre Channel Forwarders.
What configuration should be applied to an MDS switch in order to be used as the best switch to connect by the CNAs in the fabric?
- A . fcoe fcf-priority 1024
- B . fcoe fcf-priority 512
- C . fcoe fcf-priority 0
- D . no fcoe fcf-priority
DRAG DROP

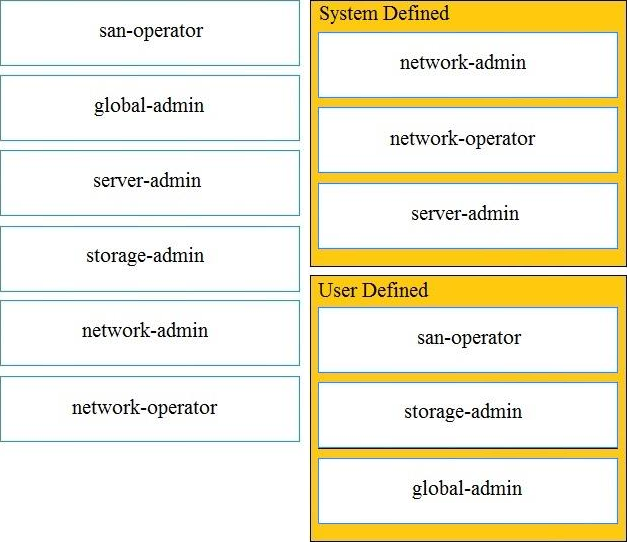

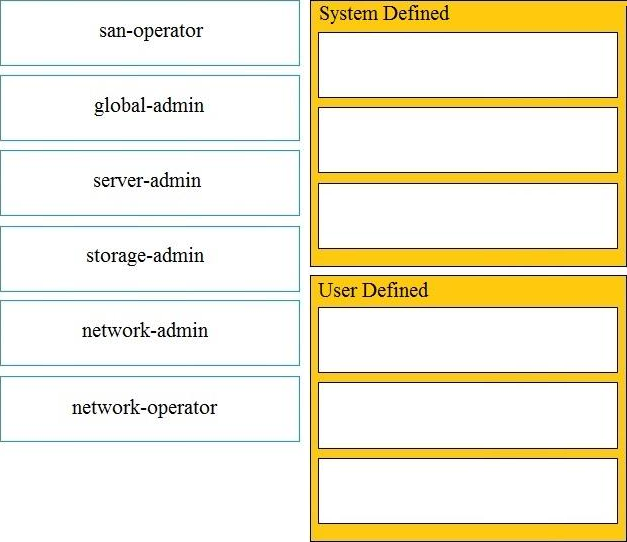

A network engineer must implement RBAC on Cisco MDS 9000 Series Multilayer Switches.
Drag and drop the Cisco MDS 9000 Series roles from the left onto the correct categories on the right.
What occurs when running the command install deactivate <filename> while a software maintenance upgrade is performed on a Cisco Nexus 9000 Series switch?
- A . The current set of packages is committed.
- B . The package is removed from the switch.
- C . The package features for the line card are disabled.
- D . The current upgrade stops.
An engineer creates a service profile in Cisco UCS Manager and must assign a policy that reboots blades when changes are applied. The changes must be applied only after user acknowledgment.
Which two policies must be configured to meet these requirements? (Choose two.)
- A . Boot Policy
- B . Global Policy
- C . Power Control Policy
- D . Maintenance Policy
- E . Reboot Policy

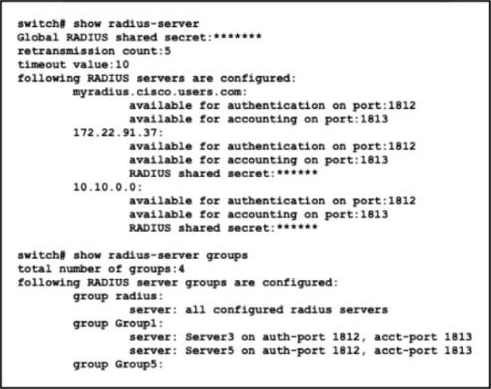

Refer to the exhibit.
A network engineer requires remote access via SSH to a Cisco MDS 9000 Series Switch. The solution must support secure access using the local user database when the RADIUS servers are unreachable from the switches.
Which command meets these requirements?
- A . aaa authentication none
- B . aaa authentication login default group radius
- C . aaa authentication login default group local
- D . aaa authentication login default fallback error local

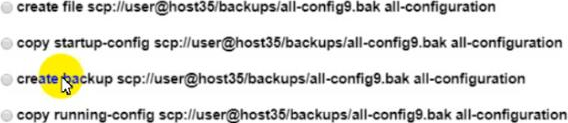

An engineer needs to make an XML backup of Cisco UCS Manager The backup should be transferred using an authenticated and encrypted tunnel and it should contain all system and service profiles configuration.
Which command must be implemented to meet these requirements?
- A . Option A
- B . Option B
- C . Option C
- D . Option D
