Cisco 350-801 Practice Exams
Last updated on Apr 01,2025- Exam Code: 350-801
- Exam Name: Implementing and Operating Cisco Collaboration Core Technologies (CLCOR)
- Certification Provider: Cisco
- Latest update: Apr 01,2025
When setting a new primary DNS server in the Cisco UCM CLI, what is required for the change to take effect?
- A . restart of CallManager service
- B . restart of DirSync service
- C . restart of the network service
- D . restart of TFTP service
Which packet delay is the maximum supported between Cisco Unified Communications Manager nodes for clustering over WAN deployments?
- A . 150 ms round tip
- B . 510 ms round trip
- C . 40 ms round trip
- D . 80 ms round trip
An administrator is configuring LDAP for Cisco UCM with Active Directory integration. A customer has requested to use `ipphone` instead of `telephoneNumber’ as the phone number attribute.
Where does the administrator specify this attribute mapping in Cisco UCM?
- A . LDAP Custom Filter
- B . LDAP Authentication
- C . LDAP Directory user fields
- D . LDAP Directory custom user fields

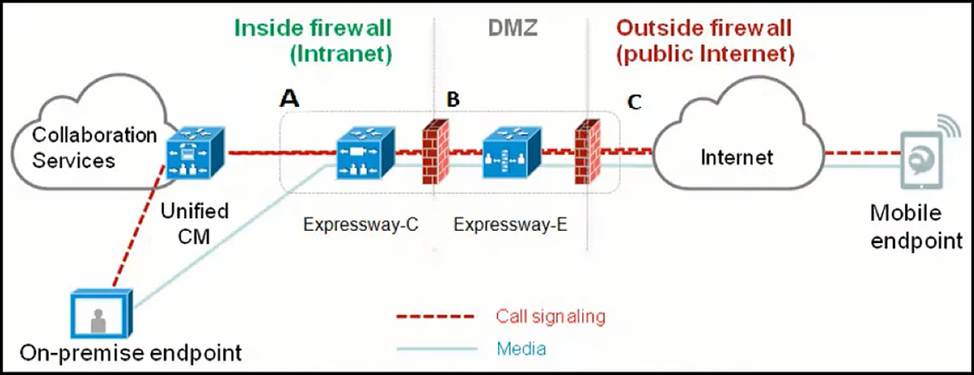

Refer to the exhibit.
When making a call to a MRA client, what are the combinations of protocol on each of the different sections A-B-C?
- A . SIP TCP/TLS (A) + SIP TLS (B) + SIP TLS (C)
- B . SIP TCP/TLS (A) + SIP TCP/TLS (B) + SIP TCP/TLS (C)
- C . IP TCP/TLS (A) + SIP TCP/TLS (B) + SIP TLS (C)
- D . SIP TLS (A) + SIP TLS (B) + SIP TLS (C)
A collaboration engineer adds a voice gateway to Cisco UCM. The engineer creates a new gateway device in Cisco UCM, selects VG320 as the device type, and selects MGCP as the protocol.
What must be done next to add the gateway to the Cisco UCM database?
- A . Select a device pool for the new gateway.
- B . Add the FQDN or hostname of the device.
- C . Configure the module in slot 0 of the new gateway.
- D . Select the DTMF relay type for the gateway.

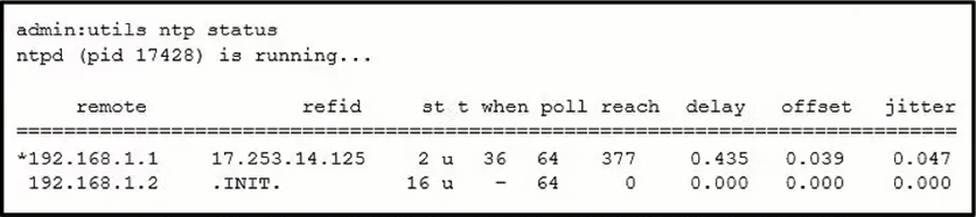

Refer to the exhibit.
A collaboration engineer adds a redundant NTP server to an existing Cisco Collaboration solution. On the Cisco UCM OS Administration page, the new NTP server shows as `Not Accessible`.
Which action resolves this issue?
- A . Delete and re-add the new NTP server via the Cisco UCM command-line interface.
- B . Start the NTP service on the new NTP server.
- C . Configure the ג reach ג value as ג 377 ג for the new NTP server.
- D . Restart NTPD on the Cisco UCM server.
Which DTMF relay method configured on a SIP dial-peer will ensure that a media resource is not invoked by Unified CM for calls to UCCX IVRs?
- A . sdtmf-relay h245-signal
- B . dtmf-relay rtp-nte
- C . dtmf-relay sip-notify
- D . dtmf-relay sip-kpml

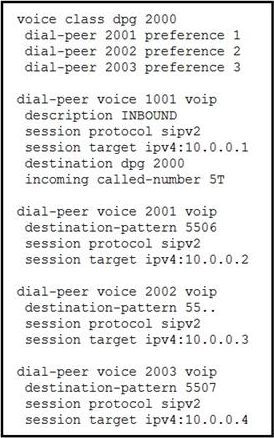

Refer to the exhibit.
A Cisco UCM user with directory number 4401 dials 5507, and the call is routed to a Cisco Unified Border Element.
Which IP address will the call be sent to?
- A . 10.0.0.2
- B . 10.0.0.3
- C . 10.0.0.4
- D . 10.0.0.1
The IP phones at a customer site do not pick an IP address from the DHCP. An engineer must temporarily disable LLDP on all ports of the switch to leave only CDP.
Which two commands accomplish this task? (Choose two.)
- A . Switch(config)# no lldp transmit
- B . Switch# configure terminal
- C . Switch# copy running-config startup-config
- D . Switch(config)# no lldp run
- E . Switch(config)# interface GigabitEthernet1/0/1
Refer to the Exhibit.
Which command is required to allow this media resource to handle Video Media streams?
- A . codec pass-through
- B . associate application Cisco Unified Border Element
- C . maximum sessions hardware 50
- D . video codec h264
