Huawei H35-211_V2.5 Practice Exams
Last updated on Apr 07,2025- Exam Code: H35-211_V2.5
- Exam Name: HCIP-Access V2.5
- Certification Provider: Huawei
- Latest update: Apr 07,2025
The Max-Forwards field can be used in the SIP message to solve the loop and avoid endless message forwarding.
- A . True
- B . False
OLT uplink can improve bandwidth and reliability through link aggregation. Which of the following modes is currently supported by OLT uplink aggregation? (Multiple choice)
- A . dynamic
- B . Manual
- C . static
- D . Automatically

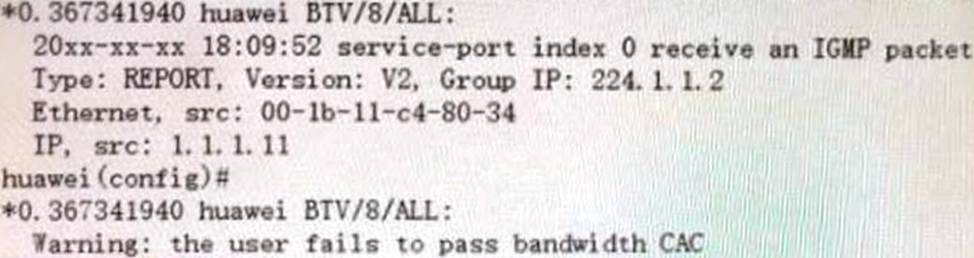

An IPTV user reported that the TV cannot be watched, and turned on the debugging switch on the OLT side. The debugging and printing information is as follows:
Huawei (config)
Which can be determined from the query results?
- A . The multicast bandwidth of the poN port is insufficient
- B . The user does not have the right to watch the program
- C . IGMP Sakamoto Mismatch
- D . User bandwidth verification failed
When OLT traffic scheduling, which of the following traffic will be marked in green?
- A . Traffic below CIR
- B . Traffic above CIR but below PIR
- C . Flow above PIR
- D . Higher traffic than CBS
If the ONU cannot be found automatically, the possible cause of the failure is? (Multiple choice)
- A . The actual distance from the ONU to the OLT is outside the ranging compensation distance configured by the OLT.
- B . The PON port is faulty.
- C . The ONU is not powered on.
- D . There are rogue ONUs that interfere with other ONU and cannot work normally.
User A and user B belong to different city servers, and both parties have only one landline at home that can be used for calls. If user A calls user B when user B calls out, the number of transactions included in the entire session is?
- A . 4
- B . 3
- C . 5
- D . 6
Regarding the Gem port design principles, which of the following statements is incorrect?
- A . Gem ports need to be planned under the same PON port, and Gem port IDs between PON ports can be repeated.
- B . In FTTH mode, each user (ONU) is allocated a Gem port for each service flow.
- C . In FTTB mode, for ordinary users, it is recommended to allocate Gem ports on each ONU according to the outer VLAN of the service flow, and each Gem port corresponds to a maximum of 1024 VLANs.
- D . In FT TB mode, for important broadband leased line users, it is recommended that each broadband leased line user corresponds to a Gem port.
According to the status of the tokens in the token bucket, the device marks the packets with colors (green, yellow, red). The colors of the marks are mainly to provide the basis for packet processing for subsequent congestion control.
- A . True
- B . False
The stages that general network design will go through and their sequence are?
- A . Information collection stage –> planning stage –> network outline design stage –> network detailed design stage –> network deployment design stage
- B . Planning stage –> network outline design stage –> information collection stage –> network detailed design stage –> network deployment design stage
- C . Planning stage –> information collection stage –> network outline design stage –> network detailed design stage –> network deployment design stage
- D . Information collection stage –> planning stage –> network deployment design stage –> network detailed design stage –> network outline design stage
The protection scope of GP ON Type B dual-homing protection includes? (Multiple choice)
- A . Active and Standby OLTs
- B . Main and backup main fiber
- C . The active and standby PON ports of the OLT
- D . Primary and backup branch fibers
