Juniper JN0-363 Practice Exams
Last updated on Apr 09,2025- Exam Code: JN0-363
- Exam Name: Service Provider Routing and Switching, Specialist (JNCIS-SP)
- Certification Provider: Juniper
- Latest update: Apr 09,2025
Exhibit

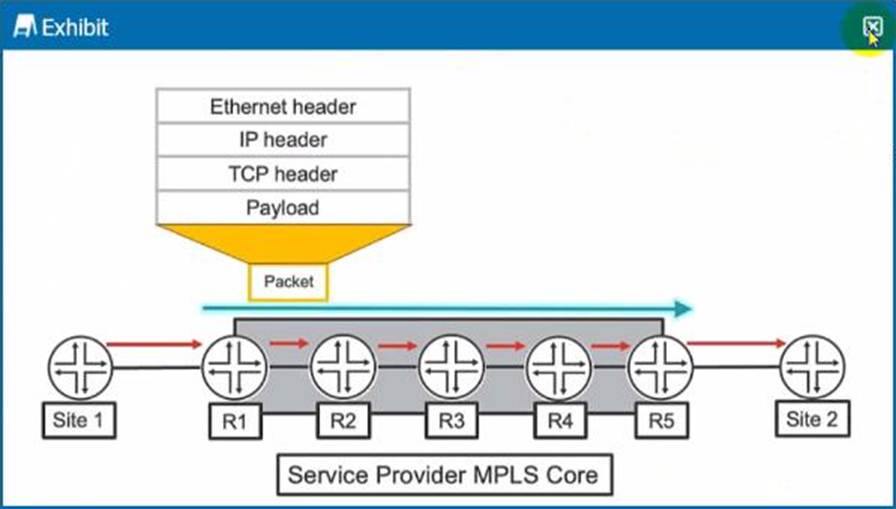

Which two statements are correct about the service provider MPLS network shown in the exhibit? (Choose two.)
- A . R3 is considered a P router.
- B . R3 is considered a PE router.
- C . R3 is considered a transit router.
- D . R3 is considered an ingress router.
Exhibit
Which two statements ate correct about the actions taken as the packet traverses the service provider MPLS network from Site 1 to Site 2 as shown in the exhibit? (Choose two.)
- A . R2 will perform a lookup using the mpls.0 table.
- B . R1 will perform a lookup using the lnet.3 table.
- C . R1 will perform a lookup using the mpls.0 table.
- D . R2 will perform a lookup using the inet.3 table.
Exhibit

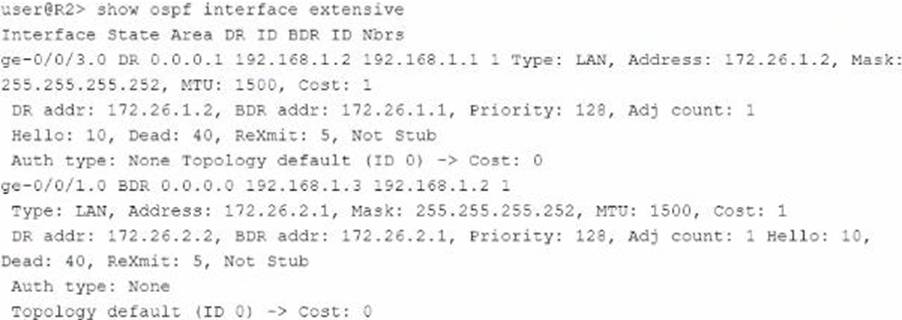

Referring to the exhibit, which two statements are correct? (Choose two.)
- A . The OSPF Interfaces are configured as point-to-point.
- B . The ge-0/0’1.0 Interface is configured as passive.
- C . The R2 device is an ABR.
- D . Junos OS default OSPF hello timers and dead intervals are used on all interfaces.
Exhibit

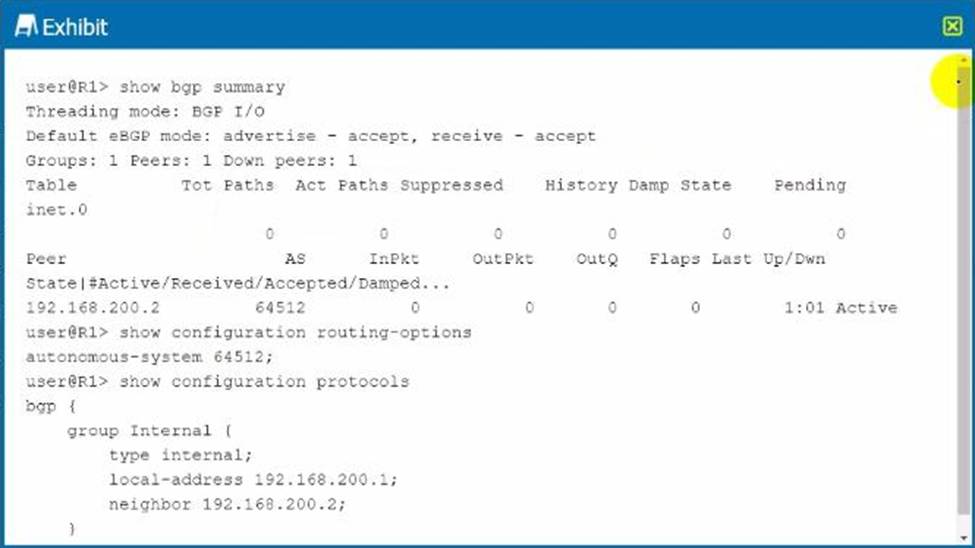

Referring to the exhibit, internal BGP between R1 and R2 is not establishing.
What is the problem In this scenario?
- A . R1 does not have a route to 192.168.200.2.
- B . R1 and R2 must each have unique AS numbers.
- C . R1 needs to be configured with an explicit router ID.
- D . R1 needs to be configured with a next-hop self policy.
Which two statements ate correct about the community BGP attribute on a Junos device? (Choose two.)
- A . The community attribute is a mandatory BGP attribute.
- B . If the community attribute is present, it is ignored and deleted in the BGP updates.
- C . If the community attribute is present, it should be passed unchanged in the BGP updates.
- D . The community attribute is an optional BGP attribute.
Exhibit

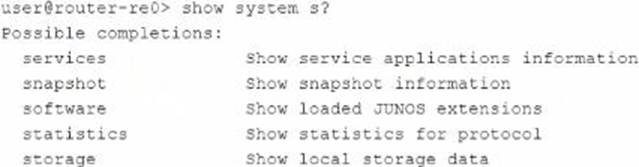

You have configured graceful RE switchover (GRES), however you cannot complete the show system switchover command.
Referring to the exhibit, what is the problem?
- A . The command is only available if non-stop routing is enabled.
- B . The command is only available on the backup Routing Engine.
- C . The command is only available If a backup router is configured.
- D . The command is only available If graceful restart is enabled.
You want to see a detailed list of all established BGP sessions.
In this scenario, what would be a valid command to accomplish this task?
- A . show bgp neighbor
- B . show bgp summary
- C . show rouse receive-protocol bgp <neighbor IP address>
- D . show rouse protocol bgp
20.1.0/24

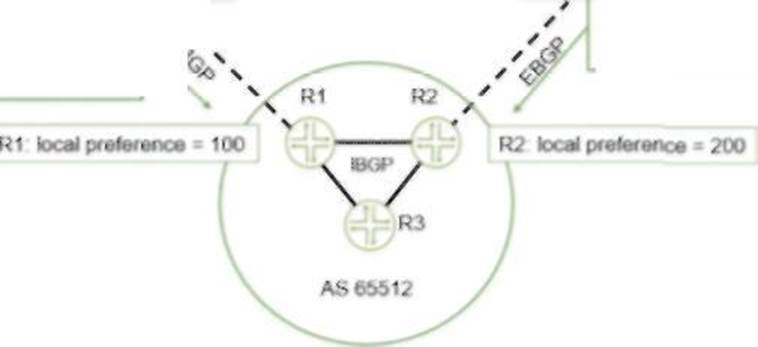

Referring to the exhibit, which two statements are correct? (Choose two.)
- A . Devices in AS 65512 will prefer ISP A for traffic destined to the 172.20.21.0/24 network.
- B . Devices In AS 65512 will prefer ISP A for traffic destined to the 172.20.0.0/24 network.
- C . Devices in AS 65512 will prefer ISP B for traffic destined to the 172.20.21.0/24 network.
- D . Devices In AS 65512 will prefer ISP B for traffic destined to the 172.20.0.0/24 network.
How does a Junos device learn about MAC addresses when II is first connected to an Ethernet LAN?
- A . The device sends out a network broadcast message asking tor all devices and MAC
addresses on the network and stores this information In addition lo the interface from which the response was received. - B . The device learns the destination MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.
- C . The device learns the source MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.
- D . The device sends out a network multicast message asking for all devices and MAC addresses on the network and stores this Information in addition to the interface from which the response was received.
You are asked to create connections between routing instances on the same Junos device and route between the connected Instances.
What are two ways to accomplish this task? (Choose two.)
- A . Use physical interfaces.
- B . Use an IRB interface.
- C . Use logical tunnel interfaces.
- D . Use loopback interfaces.
