Free Juniper JN0-480 Practice Exams

Question #1

InJuniper Apstra. which three modes are available fordevices? (Choose three.)

A . Deploy
B . Active
C . Stopped
D . Drain
E . Ready

Reveal Solution Hide Solution

Question #2

Which two statements are correct about Time Voyager? {Choose two.)

A . Time Voyager retains all of the blueprint revisions from the last Juniper Apstra backup.
B . Time Voyager retains the five most recent blueprint commits.
C . Time Voyager retains the last ten blueprint commits.
D . Time Voyager retains up to twenty-five saved revisions.

Reveal Solution Hide Solution

Question #3

When an agent installation is successful, devices are placed into which state using the Juniper Apstra Ul?

A . IS-MAINT
B . OOS-READY
C . OOS-QUARANTINED
D . IS-ACTIVE

Reveal Solution Hide Solution

Question #4

You want to make a widget appear on the main dashboard in Juniper Apstra. In this scenario, which statement is correct?

A . When creating the widget, select the Add to Blueprint Dashboard option.
B . On the blueprint dashboard, click on the Add Widget option.
C . Widgets automatically appear on the blueprint dashboard.
D . Set the Default toggle switch to On for the desired widget.

Reveal Solution Hide Solution

Correct Answer: B
B

Explanation:

In Juniper Apstra, a widget is a graphical element that displays data from an intent-based analytics (IBA) probe. A widget can be used to monitor different aspects of the network and raise alerts to any anomalies. A widget can be viewed by itself or added to an analytics dashboard. A dashboard is a collection of widgets that can be customized and organized according to the user’s preference1.

The main dashboard in Juniper Apstra is the blueprint dashboard, which is the default view that shows the network information and configuration for the active blueprint. A blueprint is a logical representation of the network design and intent. The blueprint dashboard can display the system-generated dashboards, the user-generated dashboards, and the individual widgets that are relevant to the network2.

To make a widget appear on the main dashboard in Juniper Apstra, the user needs to set the Default toggle switch to On for the desired widget. This will add the widget to the blueprint dashboard, where it can be viewed along with other network information. The user can also remove the widget from the blueprint dashboard by setting the Default toggle switch to Off for the widget3. Therefore, the statement D is correct in this scenario.

The following three statements are incorrect in this scenario:

– When creating the widget, select the Add to Blueprint Dashboard option. This is not true, because there is no such option when creating a widget in Juniper Apstra. The user can only select the widget type, the probe, and the display mode when creating a widget4. To add the widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget after creating it3.

– On the blueprint dashboard, click on the Add Widget option. This is not true, because there is no such option on the blueprint dashboard in Juniper Apstra. The user can only view, edit, or delete the existing widgets and dashboards on the blueprint dashboard2. To add a widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget from the widgets table view3.

– Widgets automatically appear on the blueprint dashboard. This is not true, because widgets do not automatically appear on the blueprint dashboard in Juniper Apstra. The user needs to manually add the widgets to the blueprint dashboard by setting the Default toggle switch to On for the widgets that they want to see on the blueprint dashboard3. The only exception is the widgets that are part of the system-generated dashboards, which are automatically created and added to the blueprint dashboard based on the state of the active blueprint2.

References:

– Widgets Overview

– Blueprint Summaries and Dashboard

– Widgets Introduction

– Create Widget

Question #5

When editing a device configuration to install some manual changes, which procedure should be followed?

A . Edit the configuration on the device directly by the CLI; the changes will automatically be adjusted in the Juniper Apstra configuration
B . Edit the pristine configuration of the device.
C . Add a persistent change to a device configuration with a configlet.
D . Delete the device from the Juniper Apstra system, change the configuration, then re-import the device.

Reveal Solution Hide Solution

Question #6

What is the purpose of using a routing zone inside Juniper Apstra software?

A . A routing zone is used to enable L4-L7 inspection inside the fabric.
B . A routing zone is defined to secure the routing protocols.
C . A routing zone defined at the Apstra manager level requires firewalls to be deployed.
D . A routing zone is used to enable the communication between two VNIs within a VRF.

Reveal Solution Hide Solution

Question #7

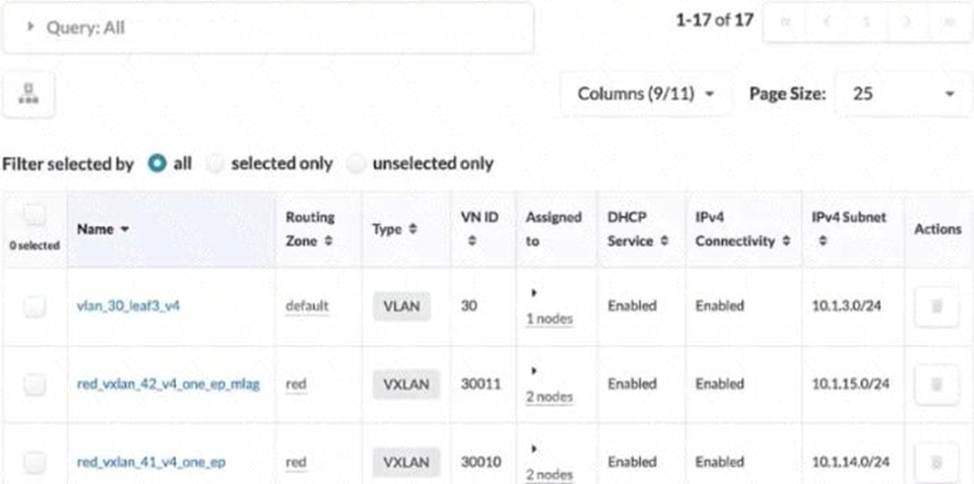

Exhibit.

Referring to the exhibit, how do you display the IPv6 subnets lot all of the listed VXLANs?

A . IPv6 subnets ate shown when each VXLAN is selected individually.
B . Select Columns, then select IPv6 Subnet.
C . Select all VXLANs. and the IPv6 Subnets column will appear
D . An IPv6 Subnets column is not shown, indicating that no VXLAN has an assigned IPv6 subnet

Reveal Solution Hide Solution
