Question #11

Which three statements describe intent-based analytics? (Choose three.)

A . It indicates when device operating versions require updating.
B . It is a real-time information processing pipeline.
C . It is used to establish network performance baselines.
D . It alerts the network operator when network performance moves away from the baseline.
E . It collects information from vendor websites.

Correct Answer: B C D
B C D

Explanation:

Intent-based analytics (IBA) is a feature of Juniper Apstra that allows you to combine intent from the network design with current and historic data from devices to reason about the network at-large1.

IBA has the following characteristics:

– It is a real-time information processing pipeline. This means that IBA can ingest, process, and analyze

large amounts of data from devices in real time, using agents and probes. Agents are software components that collect data from devices and send them to the Apstra server. Probes are user-defined queries that aggregate data across devices and generate advanced data that can be more easily reasoned about1.

– It is used to establish network performance baselines. This means that IBA can use the advanced data to measure and monitor the network performance against the expected outcomes and service levels. IBA can also use the historic data to create baselines that represent the normal behavior and state of the network2.

– It alerts the network operator when network performance moves away from the baseline. This means that IBA can detect and report any anomalies or deviations from the baseline or the intent in the network. IBA can also provide insights and recommendations for troubleshooting and resolving the issues2.

The following two statements are incorrect in this scenario:

– It indicates when device operating versions require updating. This is not true, because IBA does not provide any information or guidance about the device operating versions or updates. IBA is focused on the network performance and compliance, not on the device maintenance or upgrade1.

– It collects information from vendor websites. This is not true, because IBA does not collect any information from vendor websites or external sources. IBA only collects information from the devices in the network, using agents and probes1.

References:

– Intent-Based Analytics ― Apstra 3.3.0 documentation

– What is Intent Based Networking? | Juniper Networks US

Question #12

You are adding a new switch to Juniper Apstra software. The Managed Devices page shows the "0 OS-Quarantined" status.

What is the proper next step to make the device ready for use in a blueprint?

A . Acknowledge the device.
B . Take the device out of maintenance mode.
C . Install the agent for the device.
D . Take the device out of drain state.

Reveal Solution Hide Solution

Question #13

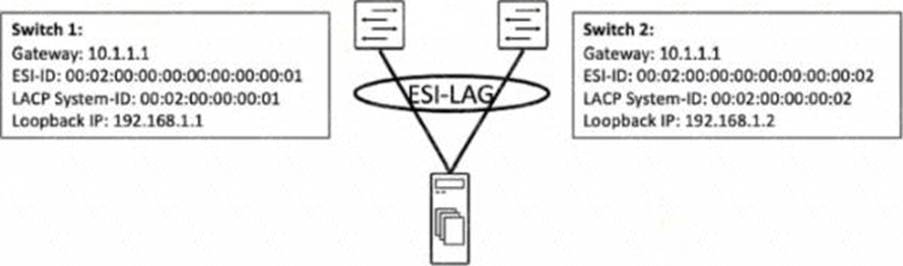

Exhibit.

You are working to build an ESI-LAG for a multihomed server. The ESI-LAG is not coming up as multihomed.

Referring to the exhibit, what are two solutions to this problem? (Choose two.)

A . The gateway IP addresses on both devices must be different.
B . The LACP system ID on both devices must be the same.
C . The loopback IP addresses on both devices must be the same.
D . The ESI ID on both devices must be the same.

Reveal Solution Hide Solution

Question #14

In the Juniper Apstra Ul. which two resource types would be created in the Resources menu? (Choose two.)

A . bridge domain identifier (BDI)
B . DHCP pools
C . ASN pools
D . IP pools

Reveal Solution Hide Solution

Question #15

You are receiving cable, interface, and BGP anomalies from several devices within the data center fabric.

In Juniper Apstra. how would you troubleshoot these types of errors?

A . In the Ul, go to Time Voyager and revert to the last working version.
B . In the Ul, access the console to the devices and review the interface states.
C . In the Ul, go to Devices and confirm that agent connectivity is fine.
D . In the Ul, verify device connectivity by consulting the cable map.

Reveal Solution Hide Solution

Question #16

You have recently committed a change after creating a new blueprint in Juniper Apstra. In the main dashboard, you see a number of anomalies related to BGR.

What is a likely cause of these anomalies?

A . You have misconfigured ASNs.
B . The fabric has not converged yet.
C . Spine-leaf links are incorrectly set.
D . A generic system has not been configured.

Reveal Solution Hide Solution

Correct Answer: B
B

Explanation:

In Juniper Apstra, a blueprint is a logical representation of the network design and configuration. When you create a new blueprint, you need to commit the changes to apply them to the network devices. However, committing the changes does not mean that the network is immediately updated and operational. It may take some time for the network to converge and reflect the new state of the blueprint. During this time, you may see some anomalies related to BGP in the main dashboard, which indicate that the BGP sessions are not established or stable between the devices. These anomalies are usually temporary and will disappear once the network converges and the BGP sessions are up and running. Therefore, the statement B is the most likely cause of these anomalies in this scenario.

The following three statements are less likely causes of these anomalies in this scenario:

– You have misconfigured ASNs. This is possible, but not very likely, because Juniper Apstra provides ASN pools that can be automatically assigned to the devices based on their roles. You can also manually specify the ASNs for the devices, but you need to ensure that they are unique and consistent with the network design. If you have misconfigured ASNs, you may see some anomalies related to BGP, but they will not disappear after the network converges. You will need to fix the ASNs and commit the changes again to resolve the anomalies.

– Spine-leaf links are incorrectly set. This is possible, but not very likely, because Juniper Apstra provides connectivity templates that can be used to define the spine-leaf links based on the interface maps. You can also manually specify the spine-leaf links, but you need to ensure that they are correct and match the physical cabling. If you have incorrectly set the spine-leaf links, you may see some anomalies related to BGP, but they will not disappear after the network converges. You will need to fix the spine-leaf links and commit the changes again to resolve the anomalies.

A generic system has not been configured. This is not relevant, because a generic system is a device that is not managed by Juniper Apstra, but is connected to the network. A generic system does not affect the BGP sessions between the devices that are managed by Juniper Apstra. If you have a generic system in your network, you need to configure it manually and ensure that it is compatible with the network design. A generic system does not cause any anomalies related to BGP in the main dashboard.

References:

– Blueprint Summaries and Dashboard

– BGP Session Flapping Probe

– Probe: BGP Session Monitoring

Question #17

Juniper Apstra has indicated an anomaly with respect to cabling.

What are two ways to remediate the issue? (Choose two.)

A . Manually edit the cabling map.
B . Redeploy the errant device.
C . Set the invalid ports to a disabled state.
D . Have Apstra autoremediate the cabling map using LLDP.

Reveal Solution Hide Solution

Question #18

Which two statements about VXLAN VNIs are correct? (Choose two.)

A . VNIs can have over 16 million unique values.
B . VNIs identify a collision domain.
C . VNIs identify a broadcast domain
D . VNIs are alphanumeric values.

Reveal Solution Hide Solution

Question #19

You are installing a Juniper Apstra server in your data center. You have multiple users that will be expected to configure, manage, and carry out operational tasks in your data center. You have decided to implement remote user authentication for the role-based access control of your Apstra server.

In this scenario, which three methods are supported? (Choose three.)

A . TACACS+
B . LDAP
C . RADIUS
D . SAML
E . Auth0

Reveal Solution Hide Solution

Question #20

Exhibit.

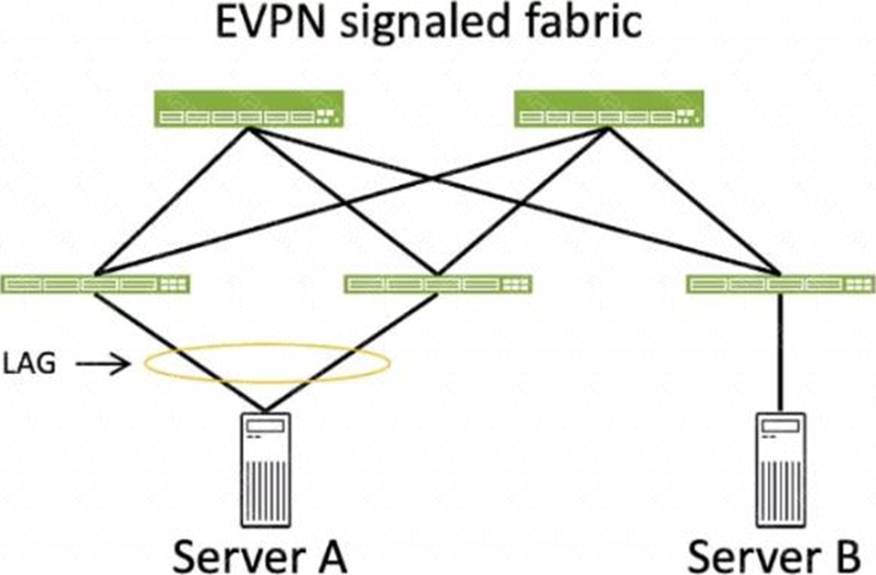

Which two statements about ESI values are correct for the server connections to the fabric shown in the exhibit? (Choose two.)

A . A valid ESI value for Server A is 0x00.00.00.00.00.00.00.00.00.00.
B . A valid ESI value for Server B is 0x00.20.20.20.20.20.20.20.20.20.
C . A valid ESI value for Server A is 0x00.10.10.10.10.10.10.10.10.10.
D . A valid ESI value for Server B is 0x00.00.00.00.00.00.00.00.00.00.

Reveal Solution Hide Solution

Correct Answer: C D
C D

Explanation:

To answer this question, we need to understand the concept of ESI values in EVPN LAGs. An ESI is a 10-byte value that identifies an Ethernet segment, which is a set of links that connect a multihomed device (such as a server) to one or more PE devices (such as leaf switches) in an EVPN network. The same ESI value must be configured on all the PE devices that connect to the same Ethernet segment. This allows the PE devices to form an EVPN LAG, which supports active-active or active-standby multihoming for the device. The ESI value can be manually configured (type 0) or automatically derived from LACP (type 1) or other methods. In the exhibit, Server A is connected to two leaf switches (QFX 5210) using a LAG with LACP enabled. Server B is connected to three leaf switches (QFX 5120) using a LAG with LACP enabled.

Based on this information, the following statements are correct about ESI values for the server connections to the fabric:

– C. A valid ESI value for Server A is 0x00.10.10.10.10.10.10.10.10.10. This is true because this ESI value can be automatically derived from the LACP configuration on the QFX 5210 devices. The LACP system ID is usually based on the MAC address of the device, and the LACP administrative key is a 2-byte value that identifies the LAG. For example, if the MAC address of the QFX 5210 device is 00:10:10:10:10:10 and the LAG ID is 10, then the LACP system ID is 00:10:10:10:10:10 and the LACP administrative key is 00:0A. The ESI value is then derived by concatenating the LACP system ID and the LACP administrative key, resulting in 00:10:10:10:10:10:00:0A. This ESI value can be represented in hexadecimal notation as 0x00.10.10.10.10.10.00.0A, or padded with zeros as 0x00.10.10.10.10.10.00.0A.00.00. This ESI value must be configured on both QFX 5210 devices that connect to Server A.

– D. A valid ESI value for Server B is 0x00.00.00.00.00.00.00.00.00.00. This is true because this ESI value is a reserved value that indicates a single-homed device. Server B is connected to three leaf switches (QFX 5120) using a LAG, but it is not multihomed to any of them. This means that Server B does not need an ESI value to form an EVPN LAG with any of the leaf switches. Instead, Server B can use the reserved ESI value of 0x00.00.00.00.00.00.00.00.00.00, which indicates that it is a single-homed device and does not participate in any EVPN LAG. This ESI value must be configured on all three QFX 5120 devices that connect to Server B. Thefollowing statements are incorrect about ESI values for the server connections to the fabric:

– A. A valid ESI value for Server A is 0x00.00.00.00.00.00.00.00.00.00. This is false because this ESI value is a reserved value that indicates a single-homed device. Server A is connected to two leaf switches (QFX 5210) using a LAG with LACP enabled, which means that it is multihomed to both of them. This means that Server A needs an ESI value to form an EVPN LAG with the leaf switches. The ESI value must be unique and non-zero for each Ethernet segment, so the reserved ESI value of 0x00.00.00.00.00.00.00.00.00.00 is not valid for Server A.

– B. A valid ESI value for Server B is 0x00.20.20.20.20.20.20.20.20.20. This is false because this ESI value is not derived from the LACP configuration on the QFX 5120 devices. Server B is connected to three leaf switches (QFX 5120) using a LAG with LACP enabled, but it is not multihomed to any of them. This means that Server B does not need an ESI value to form an EVPN LAG with any of the leaf switches. Instead, Server B can use the reserved ESI value of 0x00.00.00.00.00.00.00.00.00.00, which indicates that it is a single-homed device and does not participate in any EVPN LAG. The ESI value of 0x00.20.20.20.20.20.20.20.20.20 is not valid for Server B, and it may cause conflicts with other Ethernet segments that use the same ESI value.

References:

– Ethernet Segment Identifiers, ESI Types, and LACP in EVPN LAGs

– Understanding Automatically Generated ESIs in EVPN Networks

– Ethernet Segment in EVPN: All You Need to Know
