Free Juniper JN0-637 Practice Exams

Question #1

You are deploying threat remediation to endpoints connected through third-party devices.

In this scenario, which three statements are correct? (Choose three.)

A . All third-party switches must support AAA/RADIUS and Dynamic Authorization Extensions to the RADIUS protocol.
B . The connector uses an API to gather endpoint MAC address information from the RADIUS server.
C . All third-party switches in the specified network are automatically mapped and registered with the RADIUS server.
D . The connector queries the RADIUS server for the infected host endpoint details and initiates a change of authorization (CoA) for the infected host.
E . The RADIUS server sends Status-Server messages to update infected host information to the connector.

Reveal Solution Hide Solution

Question #2

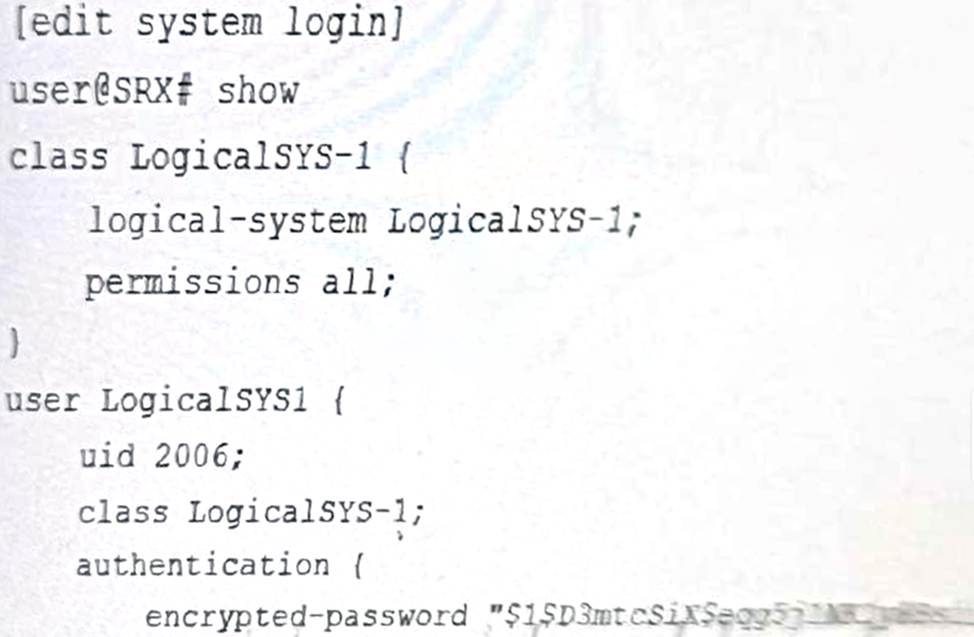

Referring to the exhibit, you have been assigned the user LogicalSYS1 credentials shown in the configuration.

In this scenario, which two statements are correct? (Choose two.)

A . When you log in to the device, you will be permitted to view all routing tables available on the SRX device
B . When you log in to the device, you will be permitted to view only the routing tables for Logic
C . When you log in to the device, you will be located at the operational mode of the Logic
D . When you log in to the device, you will be located at the operational mode of the main system

Reveal Solution Hide Solution

Question #3

You want to configure the SRX Series device to map two peer interfaces together and ensure that there is no switching or routing lookup to forward traffic.

Which feature on the SRX Series device is used to accomplish this task?

A . Transparent mode
B . Secure wire
C . Mixed mode
D . Switching mode

Reveal Solution Hide Solution

Question #4

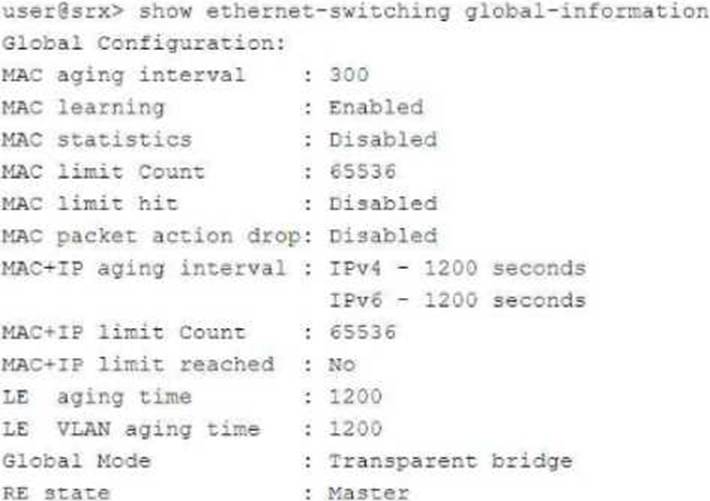

Exhibit:

Referring to the exhibit, which two statements are correct? (Choose two.)

A . You cannot secure intra-VLAN traffic with a security policy on this device.
B . You can secure inter-VLAN traffic with a security policy on this device.
C . The device can pass Layer 2 and Layer 3 traffic at the same time.
D . The device cannot pass Layer 2 and Layer 3 traffic at the same time.

Reveal Solution Hide Solution

Question #5

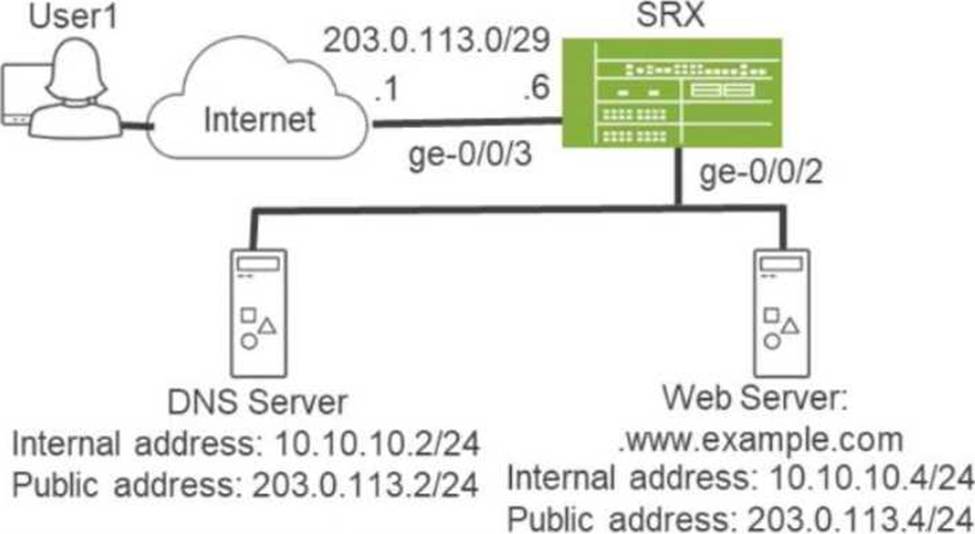

Exhibit:

You are asked to ensure that Internet users can access the company’s internal webserver using its FQDN. However, the internal DNS server’s A record only points to the webserver’s private address.

Referring to the exhibit, which two actions are required to complete this task? (Choose two.)

A . Disable the DNS ALG.
B . Configure static NAT for both the DNS server and the webserver.
C . Configure destination NAT for both the DNS server and the webserver.
D . Configure proxy ARP on ge-0/0/3.

Reveal Solution Hide Solution

Question #6

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A . The traffic is permitted.
B . The traffic was initiated by the 10.10.102.10 address.
C . The destination device is not responding.
D . The traffic is denied.

Reveal Solution Hide Solution

Question #7

You want to deploy two vSRX instances in different public cloud providers to provide redundant security services for your network. Layer 2 connectivity between the two vSRX instances is not possible.

What would you configure on the vSRX instances to accomplish this task?

A . Chassis cluster
B . Secure wire
C . Multinode HA
D . Virtual chassis

Reveal Solution Hide Solution

Question #8

In a multinode HA environment, which service must be configured to synchronize between nodes?

A . Advanced policy-based routing
B . PKI certificates
C . IPsec VPN
D . IDP

Reveal Solution Hide Solution

Question #9

What are three core components for enabling advanced policy-based routing? (Choose three.)

A . Filter-based forwarding
B . Routing options
C . Routing instance
D . APBR profile
E . Policies

Reveal Solution Hide Solution

Correct Answer: ACD
ACD

Explanation:

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper’s APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper’s SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables.

To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24 set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies. Juniper Security

Reference: Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs.

Reference: Juniper Networks APBR Documentation.

Question #10

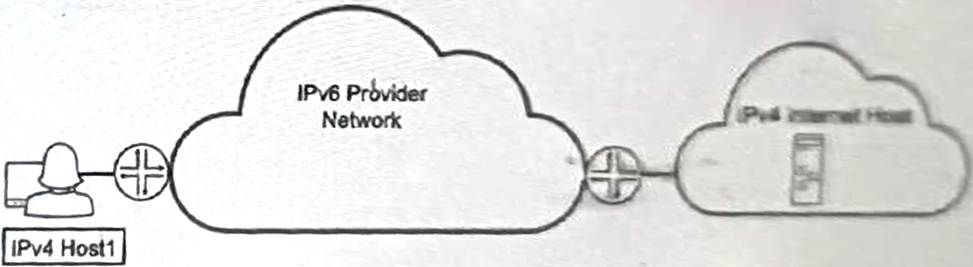

Exhibit:

Referring to the exhibit, which technology would you use to provide communication between IPv4 host1 and ipv4 internal host

A . DS-Lite
B . NAT444
C . NAT46
D . full cone NAT

Reveal Solution Hide Solution
