Juniper JN0-664 Practice Exams
Last updated on Apr 01,2025- Exam Code: JN0-664
- Exam Name: Service Provider Professional (JNCIP-SP)
- Certification Provider: Juniper
- Latest update: Apr 01,2025
Which three mechanisms are used by Junos platforms to evaluate incoming traffic for CoS purposes? (Choose three )
- A . rewrite rules
- B . behavior aggregate classifiers
- C . traffic shapers
- D . fixed classifiers
- E . multifield classifiers
Exhibit

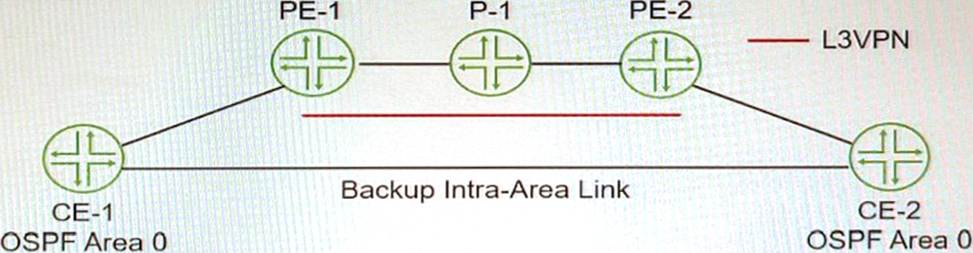

You must ensure that the VPN backbone is preferred over the back door intra-area link as long as the VPN is available. Referring to the exhibit, which action will accomplish this task?
- A . Configure an import routing policy on the CE routers that rejects OSPF routes learned on the backup intra-area link.
- B . Enable OSPF traffic-engineering.
- C . Configure the OSPF metric on the backup intra-area link that is higher than the L3VPN
link. - D . Create an OSPF sham link between the PE routers.
By default, which statement is correct about OSPF summary LSAs?
- A . All Type 2 and Type 7 LSAs will be summanzed into a single Type 5 LSA
- B . The area-range command must be installed on all routers.
- C . Type 3 LSAs are advertised for routes in Type 1 LSAs.
- D . The metric associated with a summary route will be equal to the lowest metric associated with an individual contributing route
Which two EVPN route types are used to advertise a multihomed Ethernet segment? (Choose two )
- A . Type 1
- B . Type 3
- C . Type 4
- D . Type 2
Exhibit

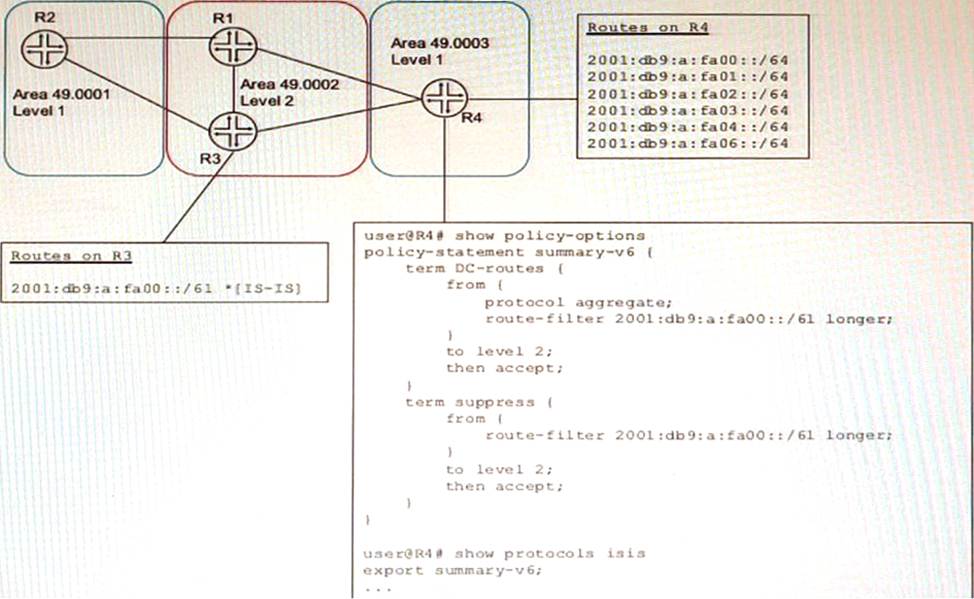

A network designer would like to create a summary route as shown in the exhibit, but the configuration is not working.
Which three configuration changes will create a summary route? (Choose three.)
- A . set policy-options policy-statement leak-v6 term DC-routes then reject
- B . delete policy-options policy-statement leak-v6 term DC-routes from route-filter 2001: db9:a: fa00 : :/6l longer
- C . set policy―options policy-statement leak-v term DC―routes from route-filter 2001:db9:a:faOO::/61 exact
- D . delete protocols isis export summary-v6
- E . set protocols isis import summary-v6
An interface is configured with a behavior aggregate classifier and a multifield classifier How will the packet be processed when received on this interface?
- A . The packet will be discarded.
- B . The packet will be processed by the BA classifier first, then the MF classifier.
- C . The packet will be forwarded with no classification changes.
- D . The packet will be processed by the MF classifier first, then the BA classifier.
Exhibit

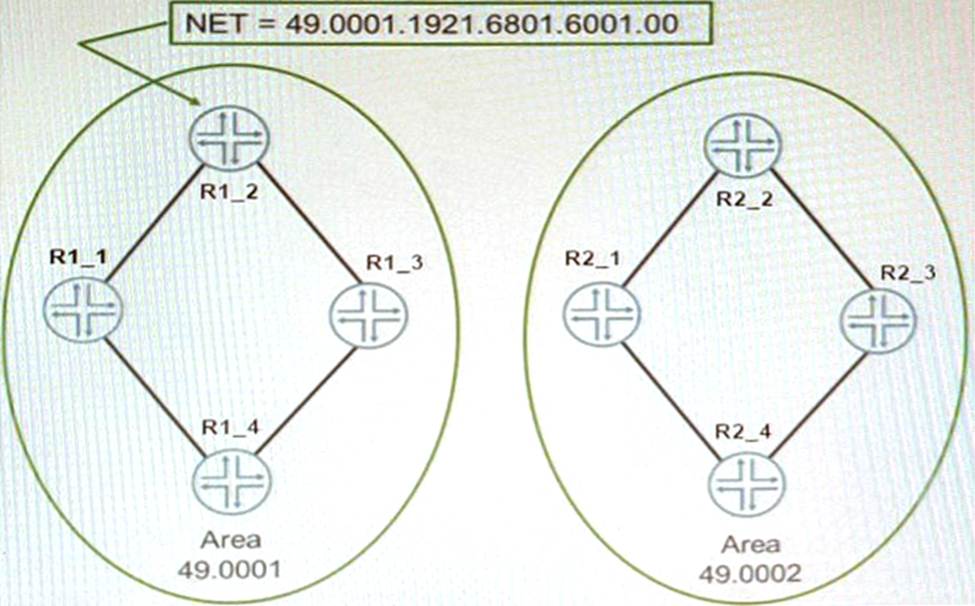

The network shown in the exhibit is based on IS-IS
Which statement is correct in this scenario?
- A . The NSEL byte for Area 0001 is 00.
- B . The area address is two bytes.
- C . The routers are using unnumbered interfaces
- D . The system IDofR1_2 is 192.168.16.1
After a recent power outage, your manager asks you to investigate ways to automatically reduce the impact caused by suboptimal routing in your OSPF and OSPFv3 network after devices reboot.
Which three configuration statements accomplish this task? (Choose three.)
- A . set protocols ospf overload timeout 900
- B . set protocols ospf3 realm ipv4-unicast overload timeout 900
- C . set protocols ospf overload
- D . set protocols oapf3 overload timeout 900
- E . set protocols ospf3 overload
Which two statements are correct about VPLS tunnels? (Choose two.)
- A . LDP-signaled VPLS tunnels only support control bit 0.
- B . LDP-signaled VPLS tunnels use auto-discovery to provision sites
- C . BGP-signaled VPLS tunnels can use either RSVP or LDP between the PE routers.
- D . BGP-signaled VPLS tunnels require manual provisioning of sites.
Exhibit

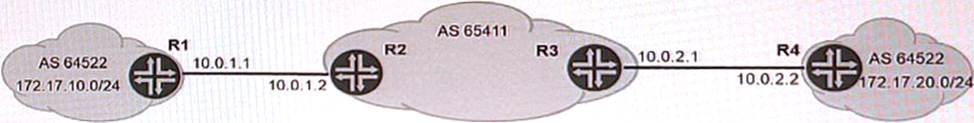

You are asked to exchange routes between R1 and R4 as shown in the exhibit. These two routers use the same AS number.
Which two steps will accomplish this task? (Choose two.)
- A . Configure the BGP group with the advertise-peer-as parameter on R1 and R4.
- B . Configure the BGP group with the as-override parameter on R2 and R3
- C . Configure the BGP group with the advertise-peer-as parameter on R2 and R3.
- D . Configure the BGP group with the as-override parameter on R1 and R4
