HOTSPOT

You need to design a storage solution for an app that will store large amounts of frequently used data.

The solution must meet the following requirements:

✑ Maximize data throughput.

✑ Prevent the modification of data for one year.

✑ Minimize latency for read and write operations.

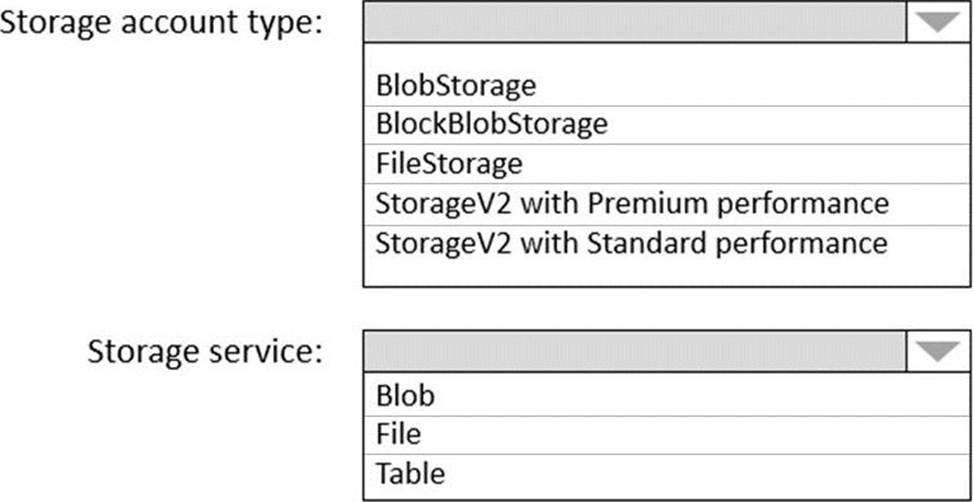

Which Azure Storage account type and storage service should you recommend? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

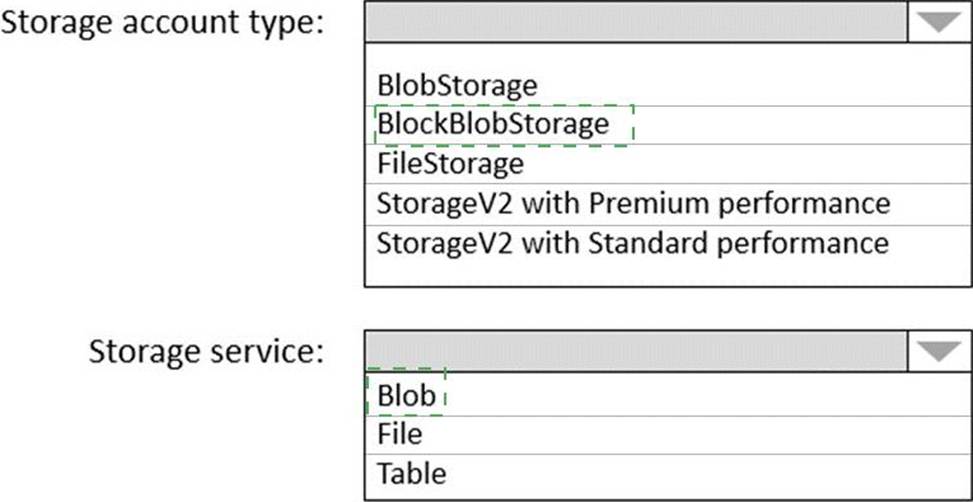

Box 1: BlockBlobStorage

Block Blob is a premium storage account type for block blobs and append blobs. Recommended for scenarios with high transactions rates, or scenarios that use smaller objects or require consistently low storage latency.

Box 2: Blob

The Archive tier is an offline tier for storing blob data that is rarely accessed. The Archive tier offers the lowest storage costs, but higher data retrieval costs and latency compared to the online tiers (Hot and Cool). Data must remain in the Archive tier for at least 180 days or be subject to an early deletion charge.

Reference: https://docs.microsoft.com/en-us/azure/storage/blobs/archive-blob

You need to recommend a solution that meets the application development requirements.

What should you include in the recommendation?

Reveal Solution Hide Solution

HOTSPOT

You have an Azure web app named App1 and an Azure key vault named KV1.

App1 stores database connection strings in KV1.

App1 performs the following types of requests to KV1:

✑ Get

✑ List

✑ Wrap

✑ Delete

✑ Unwrap

✑ Backup

✑ Decrypt

✑ Encrypt

You are evaluating the continuity of service for App1.

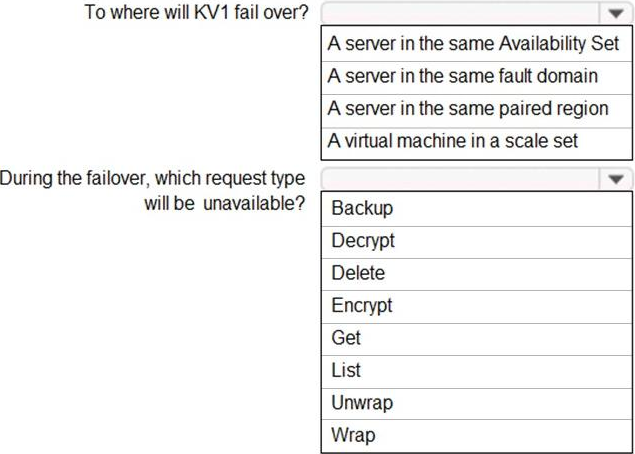

You need to identify the following if the Azure region that hosts KV1 becomes unavailable:

✑ To where will KV1 fail over?

✑ During the failover, which request type will be unavailable?

What should you identify? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

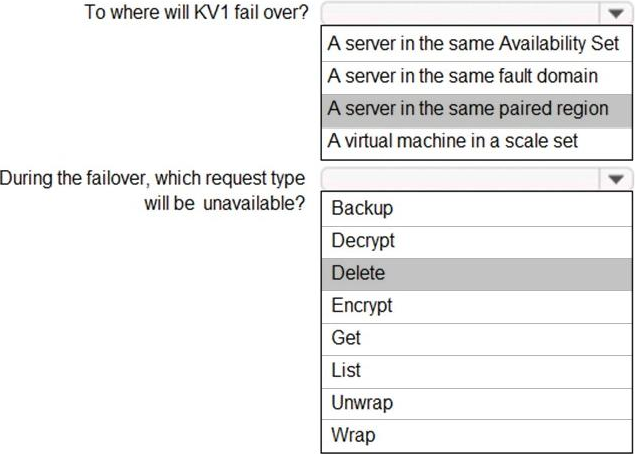

Box 1: A server in the same paired region

The contents of your key vault are replicated within the region and to a secondary region at least 150 miles away, but within the same geography to maintain high durability of your keys and secrets.

Box 2: Delete

During failover, your key vault is in read-only mode.

Requests that are supported in this mode are:

✑ List certificates

✑ Get certificates

✑ List secrets

✑ Get secrets

✑ List keys

✑ Get (properties of) keys

✑ Encrypt

✑ Decrypt

✑ Wrap

✑ Unwrap

✑ Verify

✑ Sign

✑ Backup

Reference: https://docs.microsoft.com/en-us/azure/key-vault/general/disaster-recovery-guidance

HOTSPOT

You have an Azure subscription named Subscription1 that is linked to a hybrid Azure Active Directory (Azure AD) tenant.

You have an on-premises datacenter that does NOT have a VPN connection to Subscription1. The datacenter contains a computer named Server1 that has Microsoft SQL Server 2016 installed. Server1 is prevented from accessing the internet.

An Azure logic app named LogicApp1 requires write access to a database on Server1.

You need to recommend a solution to provide LogicApp1 with the ability to access Server1.

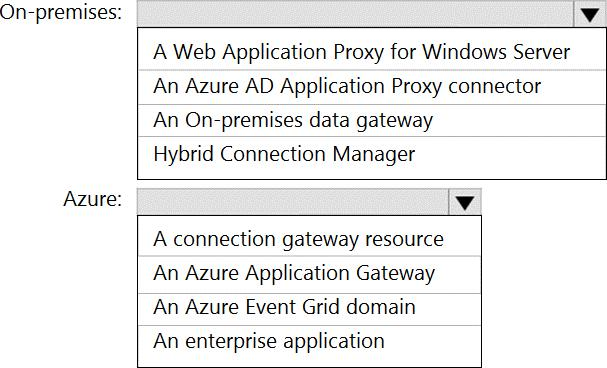

What should you recommend deploying on-premises and in Azure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

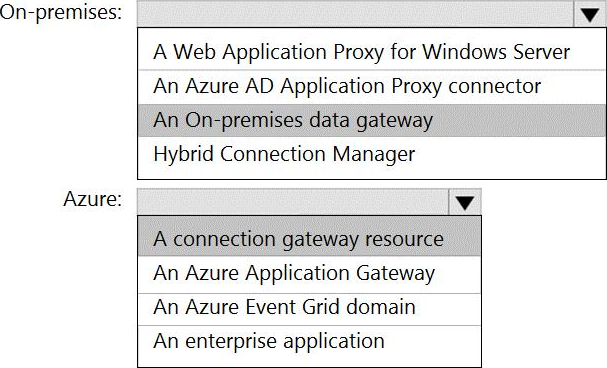

Box 1: An on-premises data gateway

For logic apps in global, multi-tenant Azure that connect to on-premises SQL Server, you need to have the on-premises data gateway installed on a local computer and a data gateway resource that’s already created in Azure.

Box 2: A connection gateway resource

Reference: https://docs.microsoft.com/en-us/azure/connectors/connectors-create-api-sqlazure

You have an Azure subscription that contains two applications named App1 and App2. App1 is a sales processing application. When a transaction in App1 requires shipping, a message is added to an Azure Storage account queue, and then App2 listens to the queue for relevant transactions.

In the future, additional applications will be added that will process some of the shipping requests based on the specific details of the transactions.

You need to recommend a replacement for the storage account queue to ensure that each additional application will be able to read the relevant transactions.

What should you recommend?

Reveal Solution Hide Solution

You are planning an Azure IoT Hub solution that will include 50,000 IoT devices.

Each device will stream data, including temperature, device ID, and time data. Approximately 50,000 records will be written every second. The data will be visualized in near real time.

You need to recommend a service to store and query the data.

Which two services can you recommend? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

You have an Azure subscription that contains a custom application named Application was developed by an external company named fabric, Ltd. Developers at Fabrikam were assigned role-based access control (RBAV) permissions to the Application components. All users are licensed for the Microsoft 365 E5 plan.

You need to recommends a solution to verify whether the Faricak developers still require permissions to Application1.

The solution must the following requirements.

* To the manager of the developers, send a monthly email message that lists the access permissions to Application1.

* If the manager does not verify access permission, automatically revoke that permission.

* Minimize development effort.

What should you recommend?

Reveal Solution Hide Solution

Topic 3, Contoso

Case Study

Overview

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study

To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Existing Environment: Technical Environment

The on-premises network contains a single Active Directory domain named contoso.com.

Contoso has a single Azure subscription.

Existing Environment: Business Partnerships

Contoso has a business partnership with Fabrikam, Inc. Fabrikam users access some Contoso applications over the internet by using Azure Active Directory (Azure AD) guest accounts.

Requirements: Planned Changes

Contoso plans to deploy two applications named App1 and App2 to Azure.

Requirements: App1

App1 will be a Python web app hosted in Azure App Service that requires a Linux runtime.

Users from Contoso and Fabrikam will access App1.

App1 will access several services that require third-party credentials and access strings.

The credentials and access strings are stored in Azure Key Vault.

App1 will have six instances: three in the East US Azure region and three in the West Europe Azure region.

App1 has the following data requirements:

✑ Each instance will write data to a data store in the same availability zone as the instance.

✑ Data written by any App1 instance must be visible to all App1 instances.

App1 will only be accessible from the internet. App1 has the following connection requirements:

✑ Connections to App1 must pass through a web application firewall (WAF).

✑ Connections to App1 must be active-active load balanced between instances.

✑ All connections to App1 from North America must be directed to the East US region. All other connections must be directed to the West Europe region.

Every hour, you will run a maintenance task by invoking a PowerShell script that copies files from all the App1 instances. The PowerShell script will run from a central location.

Requirements: App2

App2 will be a NET app hosted in App Service that requires a Windows runtime.

App2 has the following file storage requirements:

✑ Save files to an Azure Storage account.

✑ Replicate files to an on-premises location.

✑ Ensure that on-premises clients can read the files over the LAN by using the SMB protocol.

You need to monitor App2 to analyze how long it takes to perform different transactions within the application. The solution must not require changes to the application code.

Application Development Requirements

Application developers will constantly develop new versions of App1 and App2.

The development process must meet the following requirements:

✑ A staging instance of a new application version must be deployed to the application host before the new version is used in production.

✑ After testing the new version, the staging version of the application will replace the production version.

✑ The switch to the new application version from staging to production must occur without any downtime of the application.

Identity Requirements

Contoso identifies the following requirements for managing Fabrikam access to resources:

✑ uk.co.certification.simulator.questionpool.PList@1863e940

✑ The solution must minimize development effort.

Security Requirement

All secrets used by Azure services must be stored in Azure Key Vault.

Services that require credentials must have the credentials tied to the service instance. The credentials must NOT be shared between services.

HOTSPOT

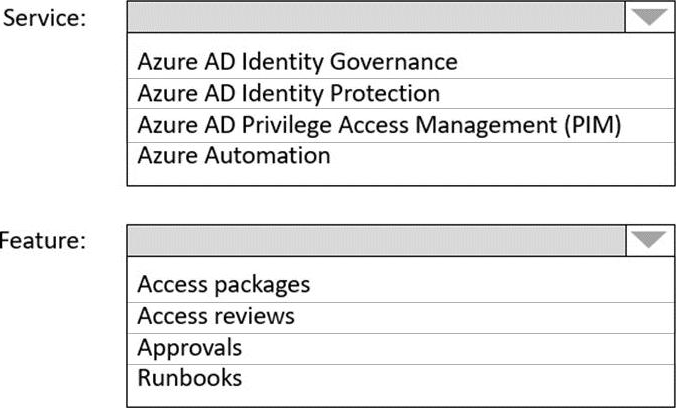

What should you implement to meet the identity requirements? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Correct Answer:

Explanation:

Requirements: Identity Requirements

Contoso identifies the following requirements for managing Fabrikam access to resources:

Every month, an account manager at Fabrikam must review which Fabrikam users have access permissions to App1. Accounts that no longer need permissions must be removed as guests.

The solution must minimize development effort.

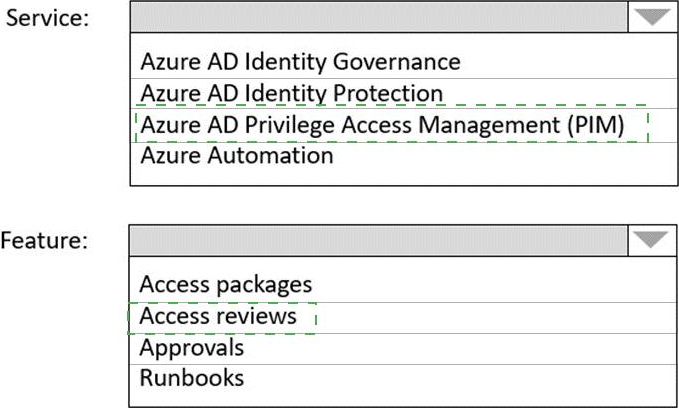

Box 1: The Azure AD Privileged Identity Management (PIM)

When should you use access reviews?

Too many users in privileged roles: It’s a good idea to check how many users have administrative access, how many of them are Global Administrators, and if there are any invited guests or partners that have not been removed after being assigned to do an administrative task. You can recertify the role assignment users in Azure AD roles such as Global Administrators, or Azure resources roles such as User Access Administrator in the Azure AD Privileged Identity Management (PIM) experience.

Box 2: Access reviews

Azure Active Directory (Azure AD) access reviews enable organizations to efficiently manage group memberships, access to enterprise applications, and role assignments. User’s access can be reviewed on a regular basis to make sure only the right people have continued access.

Reference: https://docs.microsoft.com/en-us/azure/active-directory/governance/access-reviews-overview

You plan to migrate App1 to Azure.

You need to recommend a network connectivity solution for the Azure Storage account that will host the App1 data. The solution must meet the security and compliance requirements.

What should you include in the recommendation?

Reveal Solution Hide Solution

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

Your company plans to deploy various Azure App Service instances that will use Azure SQL databases.

The App Service instances will be deployed at the same time as the Azure SQL databases.

The company has a regulatory requirement to deploy the App Service instances only to specific Azure regions. The resources for the App Service instances must reside in the same region.

You need to recommend a solution to meet the regulatory requirement.

Solution: You recommend using the Regulatory compliance dashboard in Azure Security Center.

Does this meet the goal?

Reveal Solution Hide Solution
